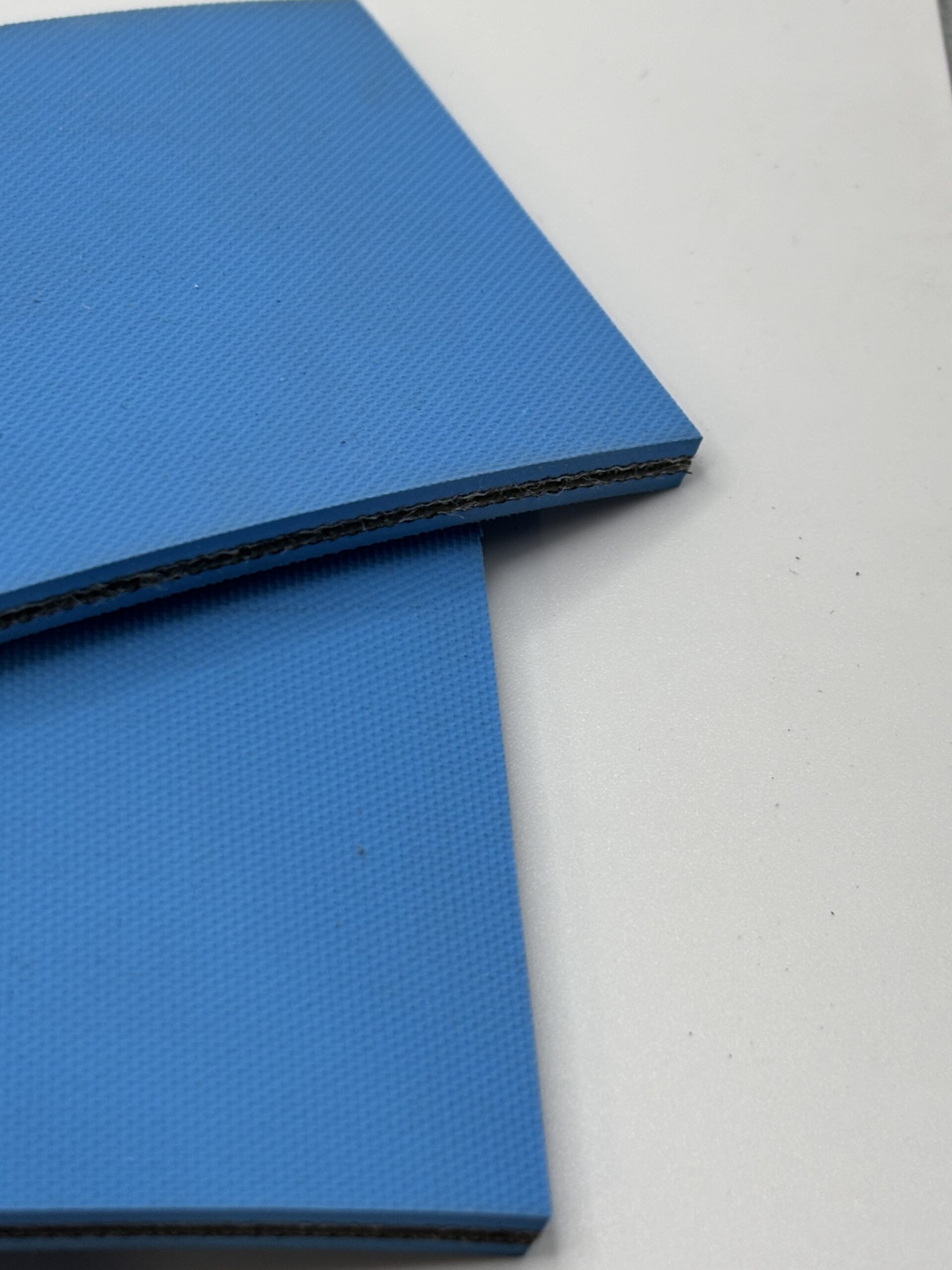

The XH500-3 Conveyor Belt is a static conducting conveyor belt fabricated by Shipp Belting Company. It features an NBR compound with an NBR top surface and NBR bottom surface.
The XH500-3 Conveyor Belt is designed for general conveying, with anti-static properties that help limit static buildup. Its 2 ply polyester construction provides an 86 PIW working tension rating, with a 0.1181 inch overall thickness for flexibility around small pulleys. With a 1.98 inch minimum pulley diameter and temperature range of -4°F to 176°F, it performs steadily in compact conveying layouts.
Key Features
- 2 ply polyester construction, 86 PIW working tension
- NBR top and NBR bottom surfaces
- 0.1181 inch overall thickness
- NBR compound, anti-static
- 1.98 inch minimum pulley diameter
