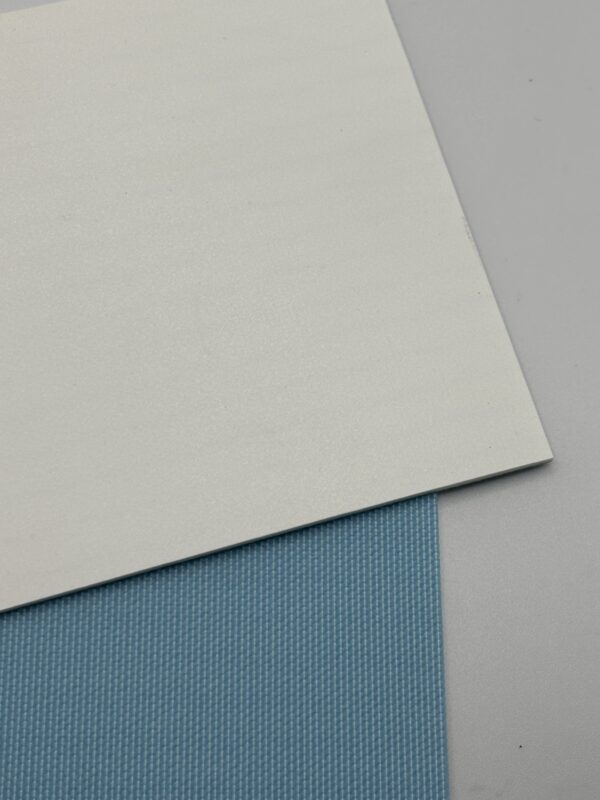

WU210HP conveyor belt material fabricated by Shipp Belting Company. The belt compound is Polyurethane with a smooth top surface and friction bottom surface.
WU210HP
Contact Us Directly for Immediate Assistance
Belt Specifications *
| Belt Compound | |
|---|---|
| Top Surface | Smooth |
| Bottom Surface | Friction |
| Color | White |
| Number of Plies | 2 |
| Nominal Thickness (in) | 0.05 |
| Anti-Static | Yes |
| Max. Width | 72 |
| Working Tension | 69 |
| Weight (Lbs) | 0.024 |
| Min. Pulley Diameter (in) | 0.25 |
| Min. Temperature | -22 |
| Max. Temperature | 230 |
| Clipper | UCM36SP |
| Staple | 62 |
| Fabric | Polyester |
| Meets FDA Requirements | Yes |
| USDA Official Approval | Yes |
