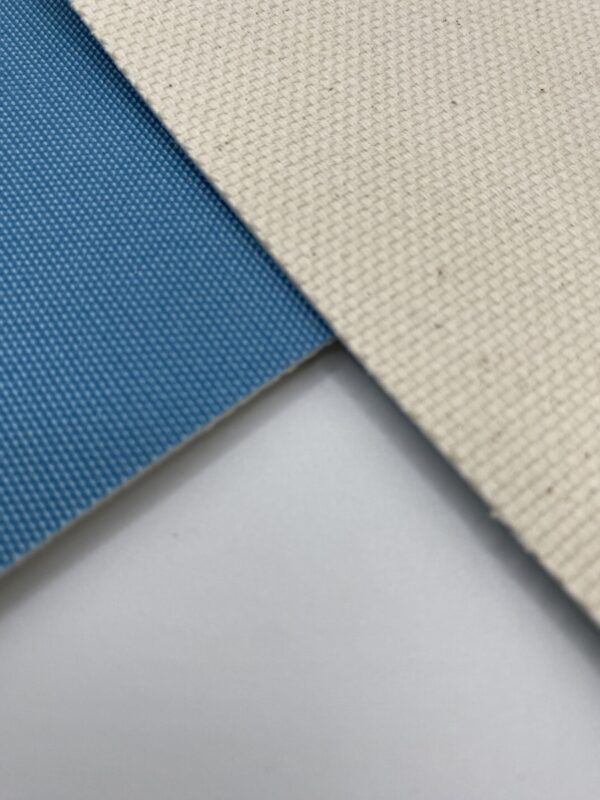

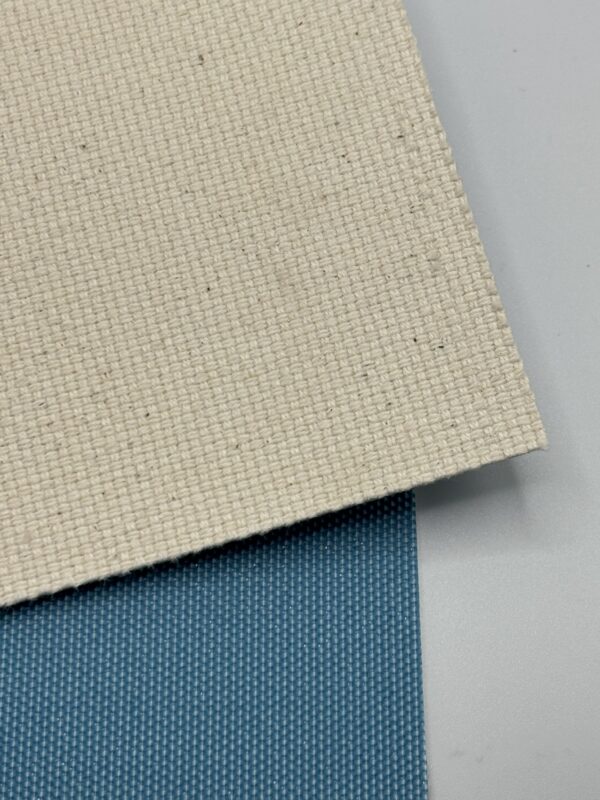

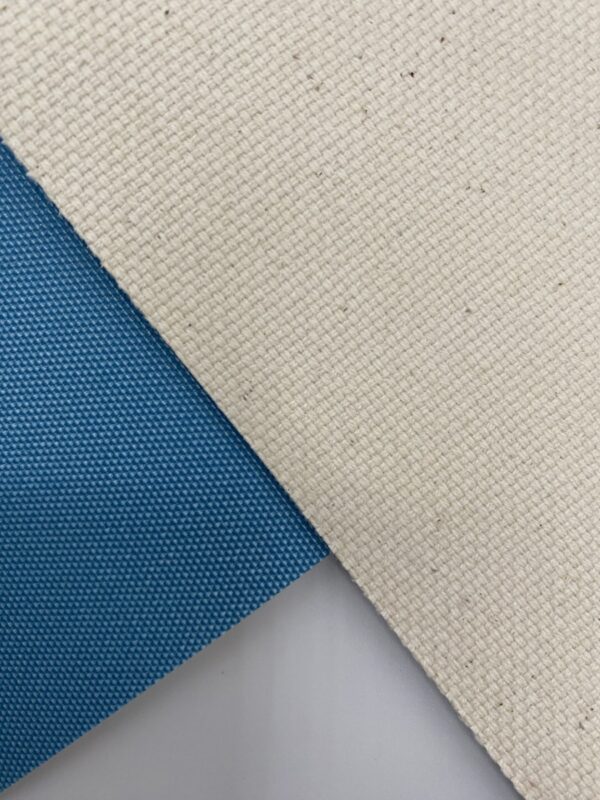

The WU200COTHP Conveyor Belt is a food grade conveyor belt fabricated by Shipp Belting Company. It features a urethane compound with a fabric top surface and friction bottom surface.
The WU200COTHP Conveyor Belt is designed for conveying where a belt meeting FDA requirements is specified, with anti-static properties that help limit static buildup. Its 2 ply monofilament and polyester construction provides a 68.5 PIW working tension rating, with a 0.06 inch overall thickness. Its minimum pulley diameter is listed as knife edge, and with a temperature range of -22°F to 212°F, it handles tight transfers across cold and hot conditions.
Key Features
- 2 ply monofilament and polyester construction, 68.5 PIW working tension
- Meets FDA requirements
- Fabric top surface, friction bottom surface

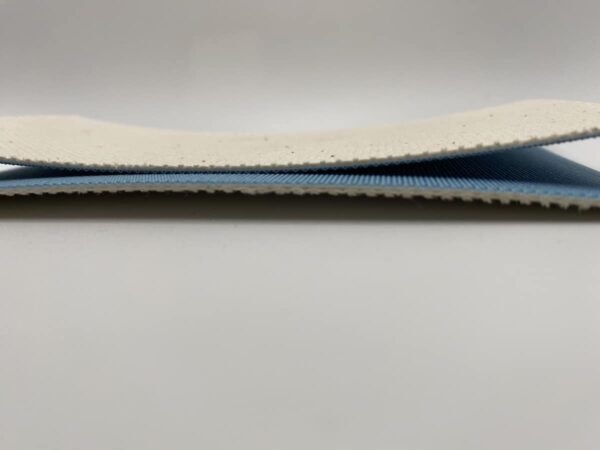

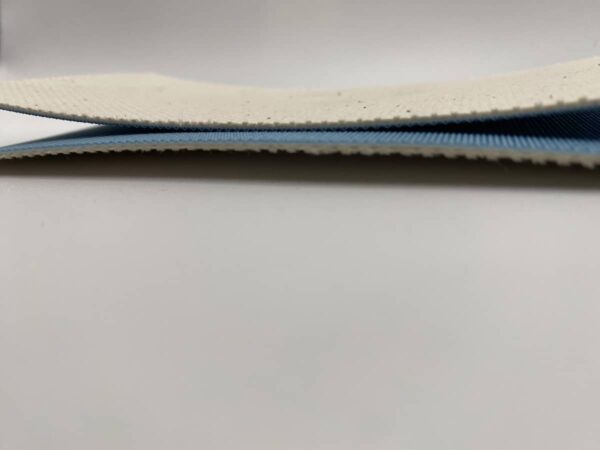

- 0.06 inch overall thickness
- Urethane compound, anti-static
- Knife edge minimum pulley diameter
