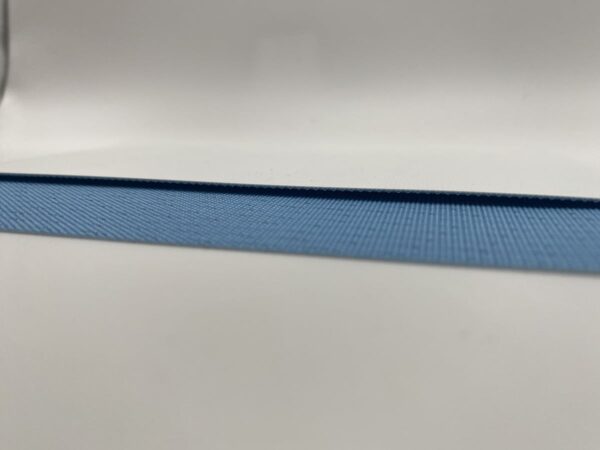

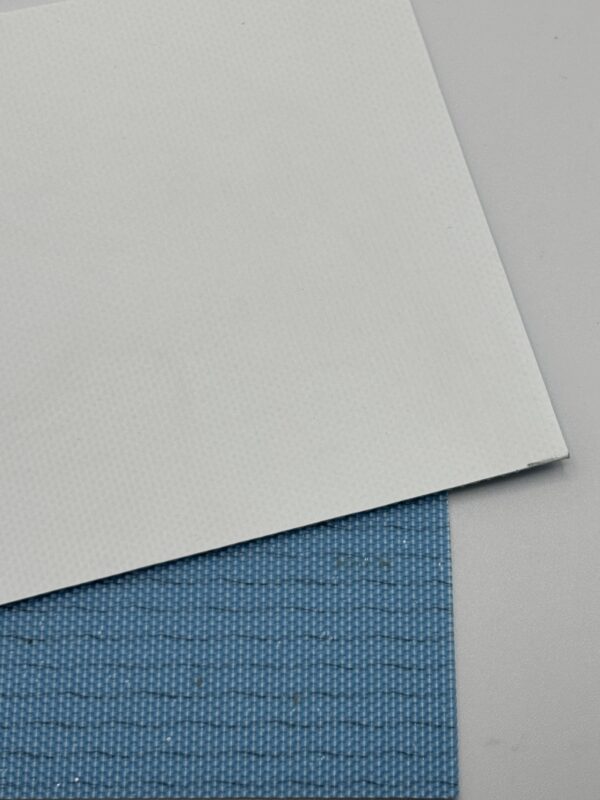

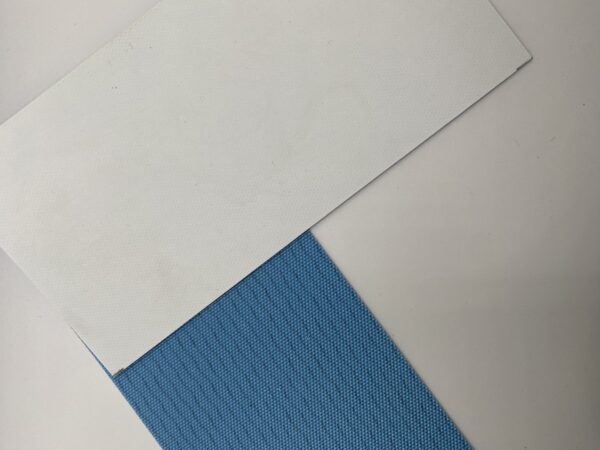

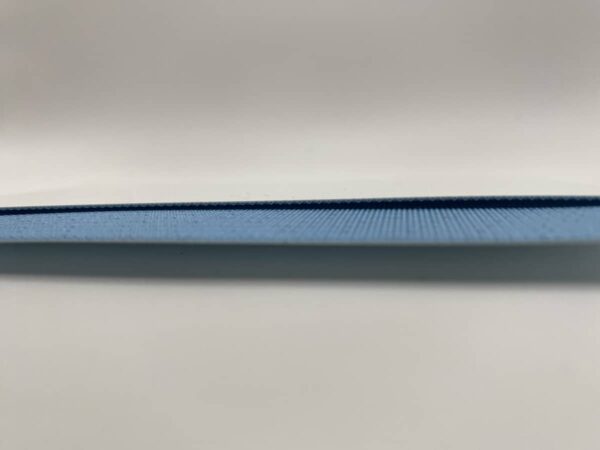

WU110HP conveyor belt material fabricated by Shipp Belting Company. The belt compound is Polyurethane with a smooth top surface and friction bottom surface.
WU110HP
Contact Us Directly for Immediate Assistance
Belt Specifications *
| Belt Compound | |
|---|---|
| Top Surface | Smooth |
| Bottom Surface | Friction |
| Color | White |
| Number of Plies | 1 |
| Nominal Thickness (in) | 0.04 |
| Anti-Static | Yes |
| Max. Width | 72 |
| Working Tension | 28.6 |
| Weight (Lbs) | 0.19 |
| Min. Pulley Diameter (in) | KNIFE |
| Min. Temperature | -22 |
| Max. Temperature | 140 |
| Clipper | UCM36XSP |
| Fabric | Monofilament, Polyester |
| Meets FDA Requirements | Yes |
| USDA Official Approval | Yes |
