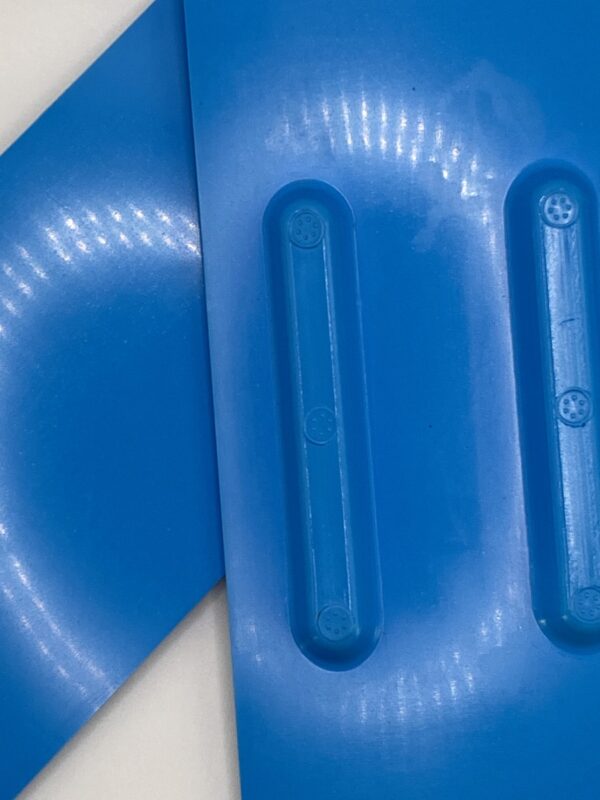

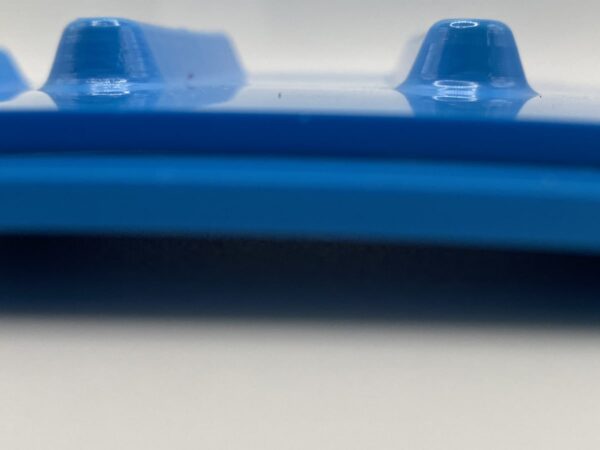

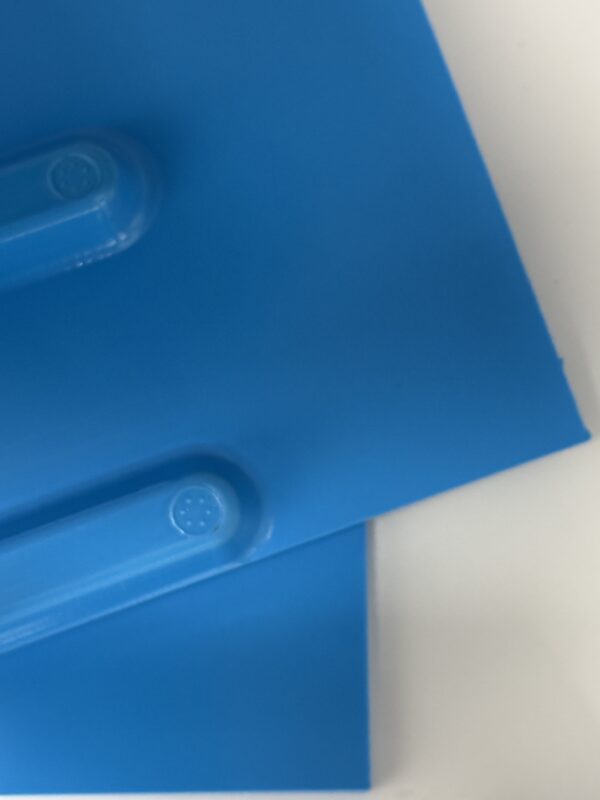

The VOLTA-FMB-3 SD is a homogeneous polyurethane (TPU) conveyor belt built for hygienic, positive drive conveying across wide, high-throughput lines. Fabricated by Shipp Belting with a smooth top surface and a LUG-profiled bottom, it is sprocket-driven rather than friction-driven — eliminating the mistracking, slippage, and heavy tensioning of conventional belts. A rated working tension of 39.2 and widths up to 80 inches make it well suited to larger conveyors and heavier product flows.
As a single non-porous piece with no fabric plies, the belt resists moisture absorption and bacterial harboring and cleans quickly under repeated washdown. It is both FDA compliant and USDA approved, and carries a blue cover for easy contaminant detection. With an operating range of −5°F to 140°F, a 4.96-inch minimum pulley diameter, and a 3 mm nominal thickness, it performs reliably from chilled rooms through ambient processing — a durable, sanitary solution that lowers water, chemical, and downtime costs.
Applications
- Food processing and packaging
- Meat and poultry
- Fish and seafood
- Baked goods and snack foods
- Wide-line and chilled sanitary conveying
