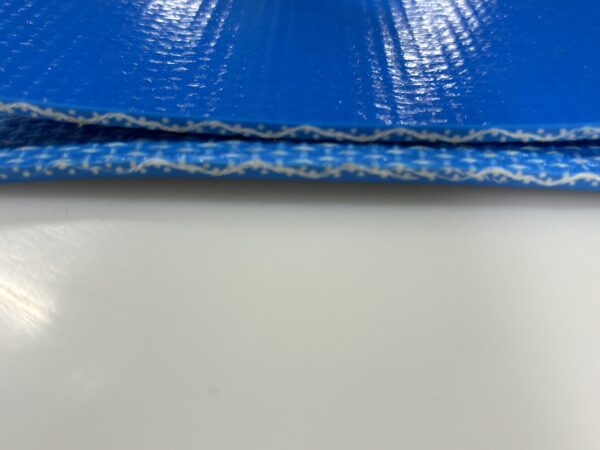

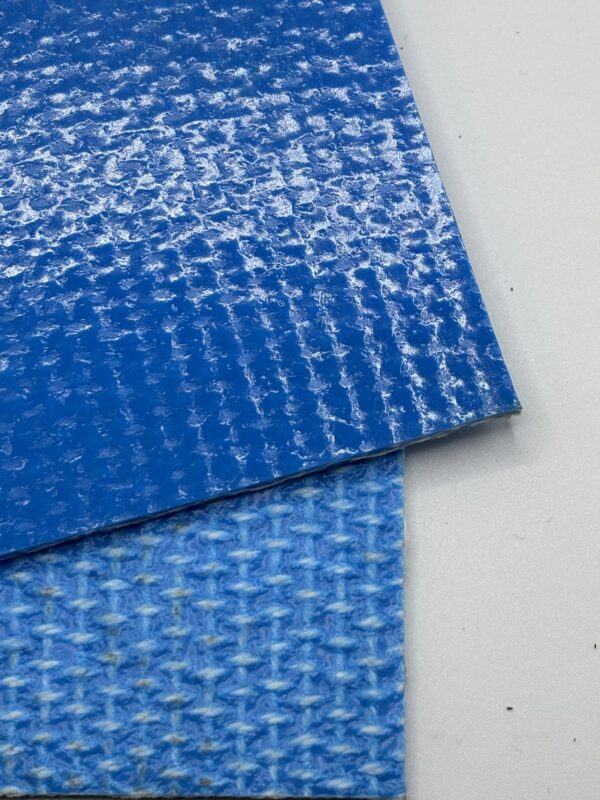

Thermo-Flex 1120 Blue conveyor belt material fabricated by Shipp Belting Company. The belt compound is RMV with a smooth top surface and friction skim bottom surface.
Thermo-Flex 1120 Blue
Contact Us Directly for Immediate Assistance
Belt Specifications *
| Belt Compound | |
|---|---|
| Top Surface | Smooth |
| Bottom Surface | Friction Skim |
| Color | Blue |
| Number of Plies | 1 |
| Nominal Thickness (in) | 0.135 |
| Anti-Static | No |
| Max. Width | 72 |
| Working Tension | 120 |
| Weight (Lbs) | 0.83 |
| Min. Pulley Diameter (in) | 2 |
| Min. Temperature | 20 |
| Max. Temperature | 200 |
| Clipper | 1 or UX1 |
| Staple | 125 |
| Fabric | Polyester Spun |
| Meets FDA Requirements | Yes |
| USDA Official Approval | Yes |
