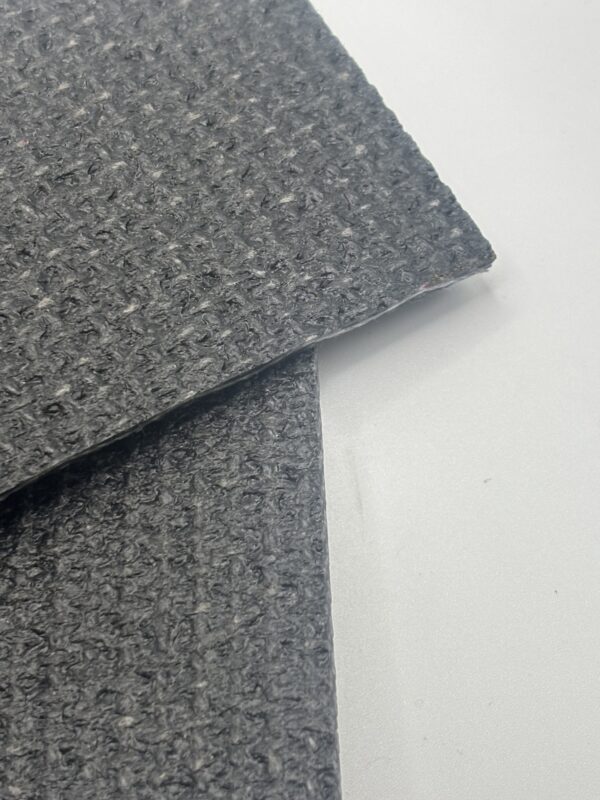

PV120FSXFS-FR conveyor belt material fabricated by Shipp Belting Company. The belt compound is PVC with a friction skim top surface and friction skim bottom surface and is fire retardant.
PV120FSXFS-FR
Contact Us Directly for Immediate Assistance
Belt Specifications *
| Belt Compound | |
|---|---|
| Top Surface | Friction Skim |
| Bottom Surface | Friction Skim |
| Color | Black |
| Number of Plies | 1 |
| Nominal Thickness (in) | 0.12 |
| Anti-Static | No |
| Max. Width | 72 |
| Working Tension | 120 |
| Weight (Lbs) | 0.057 |
| Min. Pulley Diameter (in) | 3 |
| Min. Temperature | 20 |
| Max. Temperature | 180 |
| Clipper | 1-A |
| Staple | 62 |
| Fabric | Woven Polyester |
| Meets FDA Requirements | No |
| USDA Official Approval | No |
