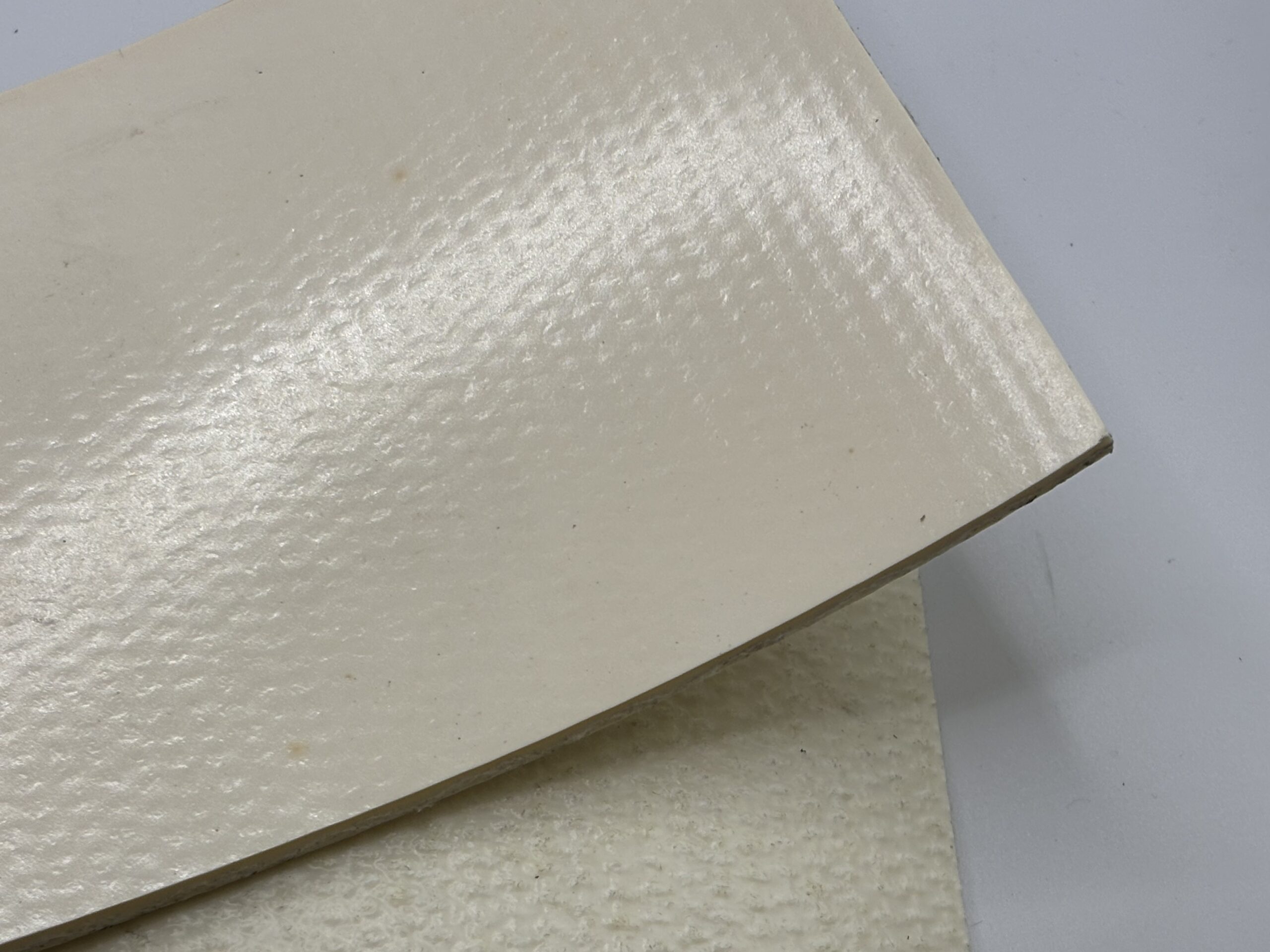

The PV-125-HC Conveyor Belt is a food grade conveyor belt fabricated by Shipp Belting Company. It features a PVC compound with a smooth top surface and friction skim bottom surface.
The PV-125-HC Conveyor Belt is designed for conveying where a belt meeting FDA requirements and carrying USDA official approval is specified. Its 1 ply interwoven polyester construction provides a 150 PIW working tension rating, with a 0.176 inch overall thickness. With a 3 inch minimum pulley diameter and temperature range of 20°F to 180°F, it offers consistent performance on light conveying lines.
Key Features
- 1 ply interwoven polyester construction, 150 PIW working tension
- Meets FDA requirements, USDA official approval
- Smooth top surface, friction skim bottom surface

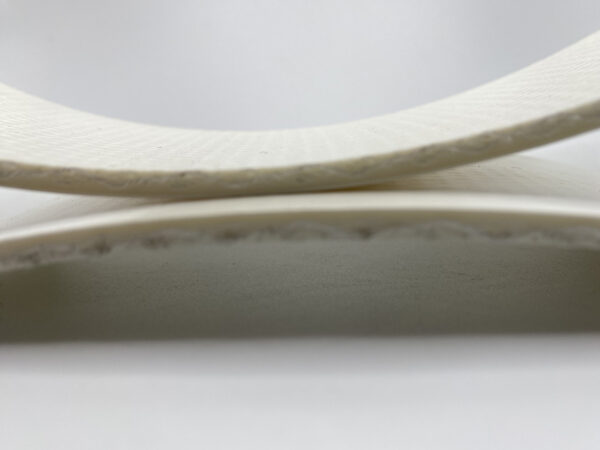

- 0.176 inch overall thickness
- PVC compound
- 3 inch minimum pulley diameter
