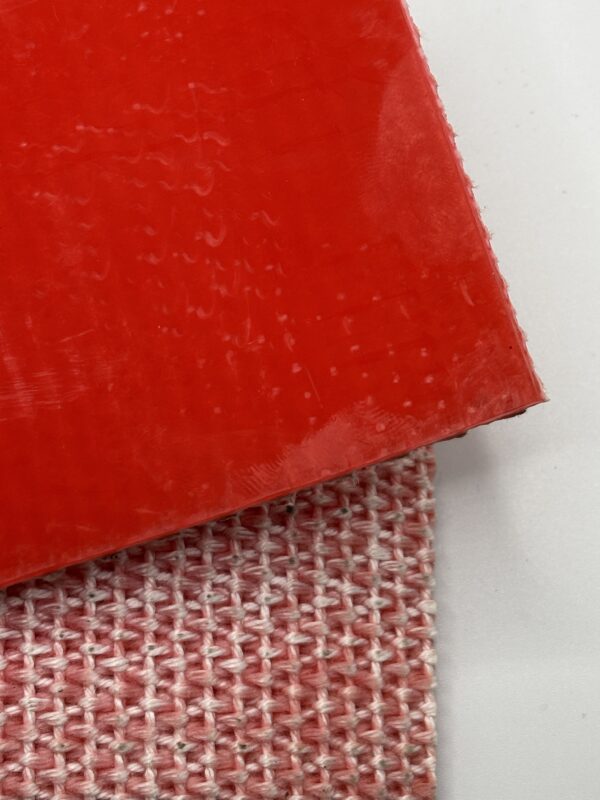

The NOVEX120 Conveyor Belt is a light duty conveyor belt fabricated by Shipp Belting Company. It features a urethane compound with a smooth top surface and friction bottom surface.
The NOVEX120 Conveyor Belt is designed to carry material on a smooth, consistent top surface suited to general conveying and accumulation. Its 1 ply multifilament and polyester construction provides a 120 PIW working tension rating, with a 0.188 inch overall thickness. With a 4 inch minimum pulley diameter and a maximum temperature of 185°F, it supports steady, everyday conveying.
Key Features
- 1 ply multifilament and polyester construction, 120 PIW working tension
- Smooth top surface for general conveying and accumulation
- Friction bottom surface, 0.188 inch overall thickness
- Urethane compound
- 4 inch minimum pulley diameter
