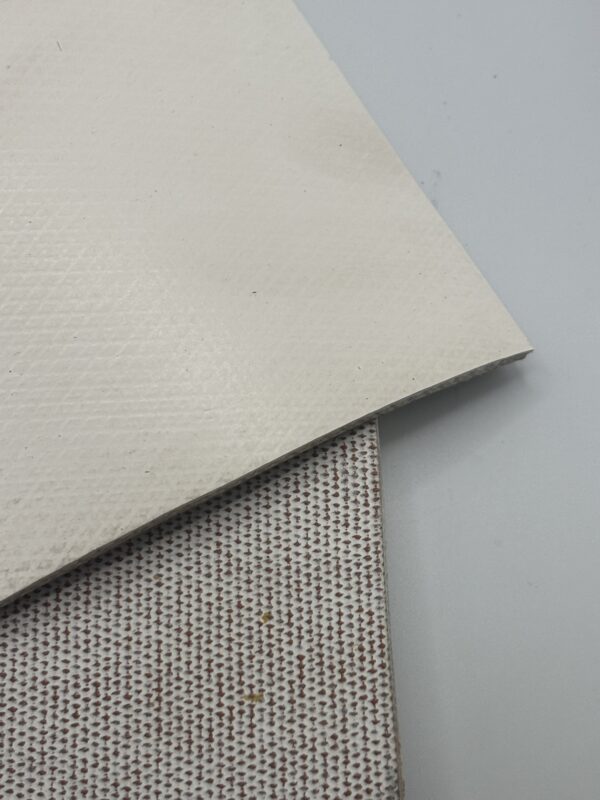

The Multi-Temp Conveyor Belt is a food grade conveyor belt fabricated by Shipp Belting Company. It features a butyl compound with a smooth top surface and friction skim bottom surface.
The Multi-Temp Conveyor Belt is designed to meet FDA requirements and carries USDA official approval, with a smooth top surface for general conveying and accumulation. Its 3 ply multifilament and polyester construction provides a 90 PIW working tension rating, with a 0.109 inch overall thickness for flexibility around small pulleys. With a 2 inch minimum pulley diameter and temperature range of -65°F to 300°F, it performs reliably from deep cold to high heat.
Key Features
- 3 ply multifilament and polyester construction, 90 PIW working tension
- Smooth top surface for general conveying and accumulation
- Friction skim bottom surface, 0.109 inch overall thickness
- Butyl compound, meets FDA requirements, USDA approved
- 2 inch minimum pulley diameter
- Rated from -65°F to 300°F
