The MB20-3M18RED Conveyor Belt is a food grade conveyor belt fabricated by Shipp Belting Company. It features a rubber compound with a smooth top surface and friction bottom surface.
The MB20-3M18RED Conveyor Belt is designed for general conveying on a smooth top surface, meeting FDA requirements with anti-static properties that help limit static buildup. Its 3 ply monofilament and polyester construction provides a 206 PIW working tension rating, with a 0.22 inch overall thickness. With a 3.9 inch minimum pulley diameter and temperature range of -4°F to 212°F, it brings solid tension capacity to light duty lines.
Key Features

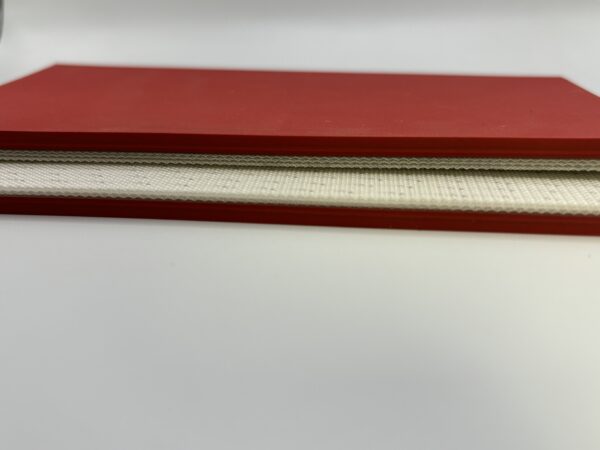

- 3 ply monofilament and polyester construction, 206 PIW working tension

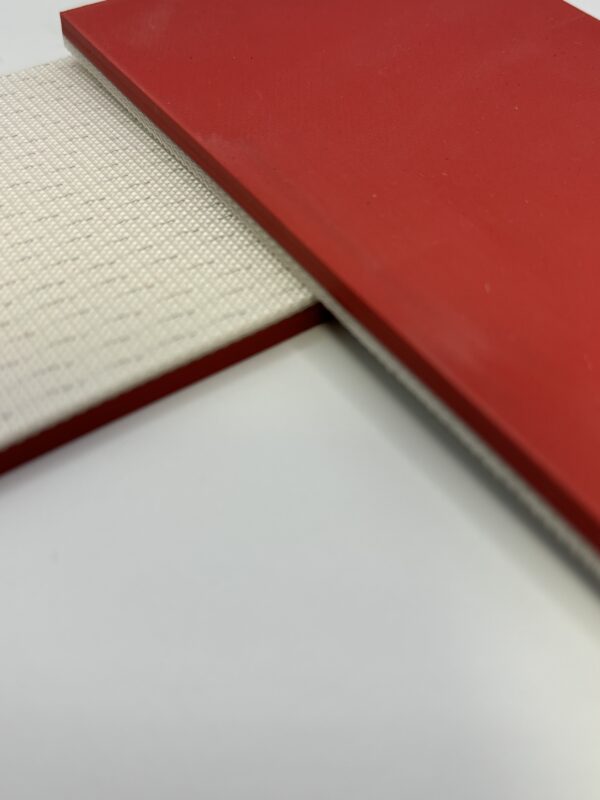

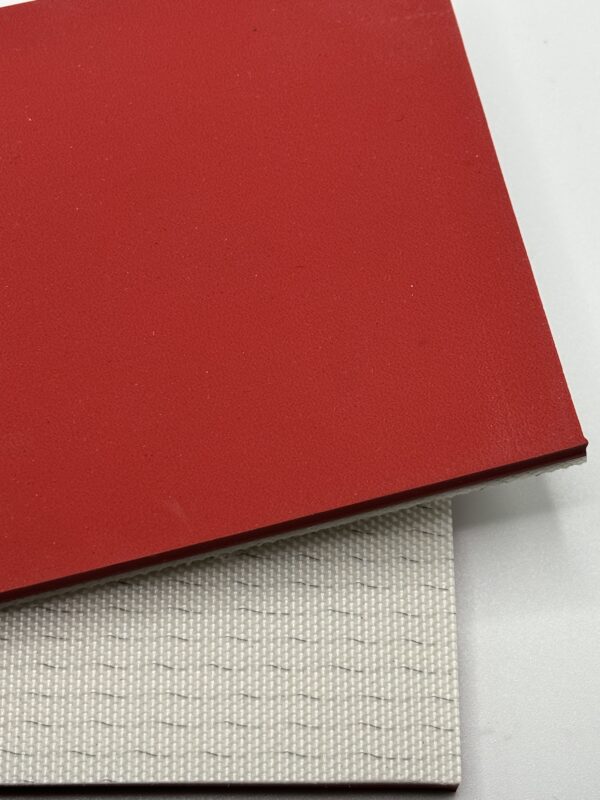

- Smooth top surface, friction bottom surface
- 0.22 inch overall thickness
- Rubber compound, anti-static
- Meets FDA requirements
- 3.9 inch minimum pulley diameter
