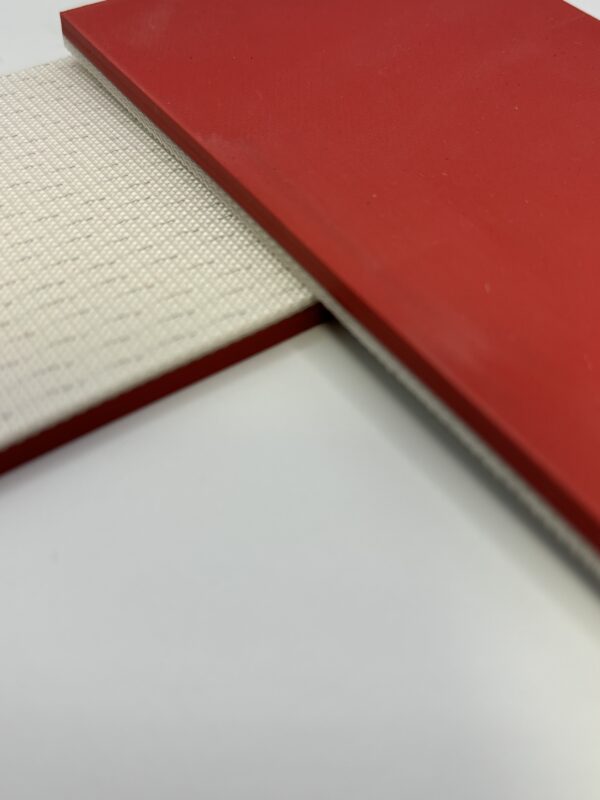

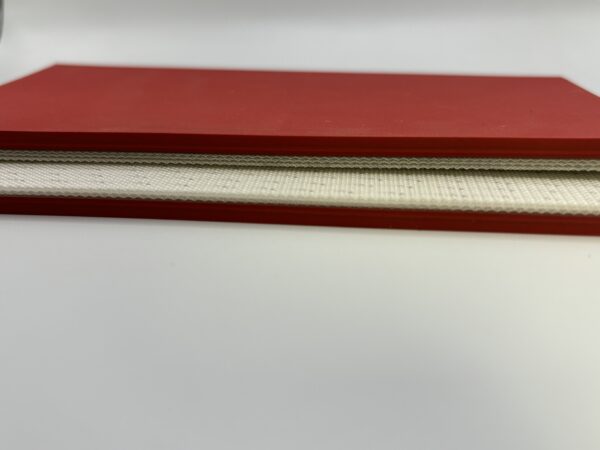

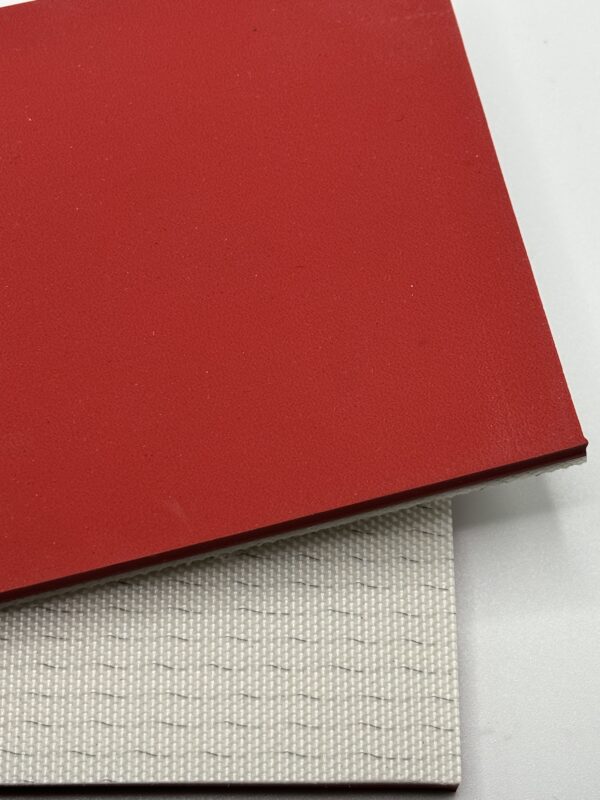

MB20-3M 18RED is a 3 ply monofilament conveyor belt material fabricated by Shipp Belting Company.
MB20-3M18RED
Contact Us Directly for Immediate Assistance
Belt Specifications *
| Belt Compound | |
|---|---|
| Top Surface | Smooth |
| Bottom Surface | Friction |
| Color | Red |
| Number of Plies | 3 |
| Nominal Thickness (in) | .22 |
| Anti-Static | Yes |
| Max. Width | 30 |
| Working Tension | 206 |
| Weight (Lbs) | .12 |
| Min. Pulley Diameter (in) | 3.9 |
| Min. Temperature | -4 |
| Max. Temperature | 212 |
| Clipper | 2 |
| Staple | 125 |
| Fabric | Monofilament, Polyester |
| Meets FDA Requirements | Yes |
| USDA Official Approval | No |
| Waco Stock | Yes |
