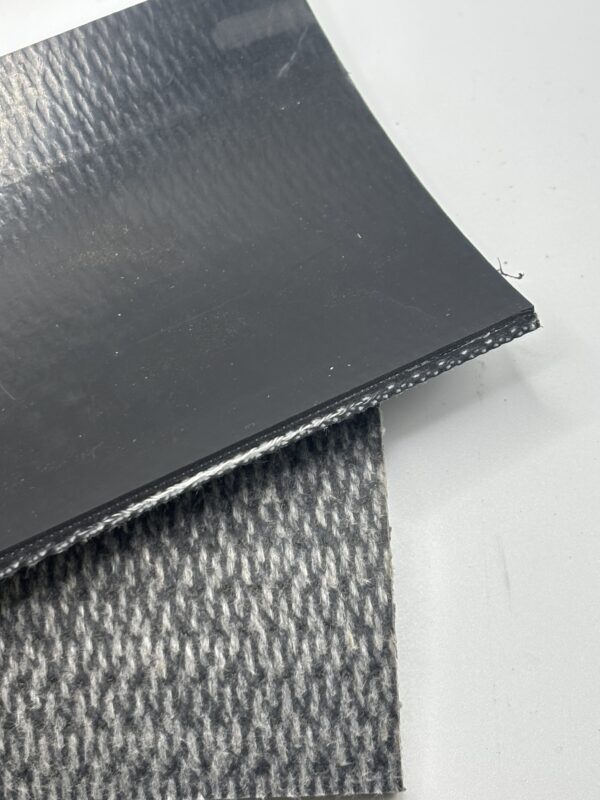

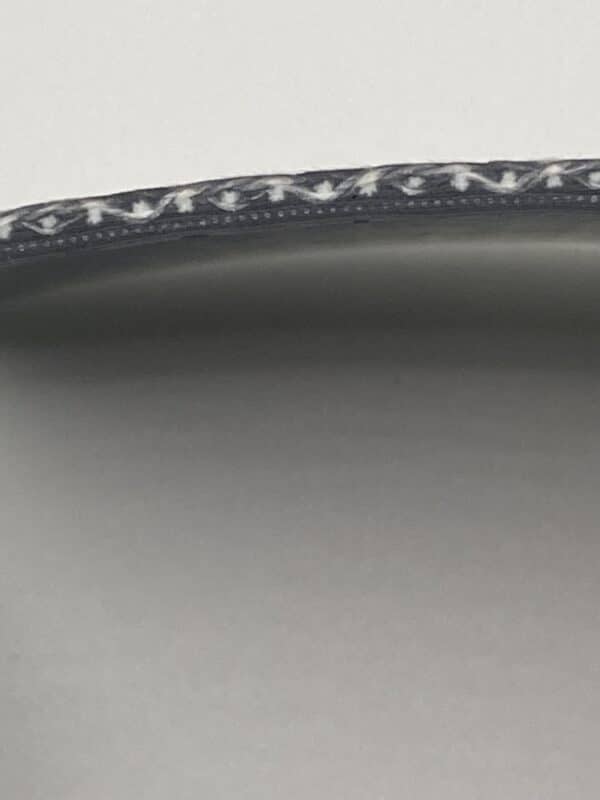

IWP120COS conveyor belt material fabricated by Shipp Belting Company. The belt compound is PVC with a smooth top surface and friction bottom surface.
IWP120COS
Contact Us Directly for Immediate Assistance
Belt Specifications *
| Belt Compound | |
|---|---|
| Top Surface | Smooth |
| Bottom Surface | Friction |
| Color | Black |
| Number of Plies | 2 |
| Nominal Thickness (in) | 0.135 |
| Anti-Static | No |
| Max. Width | 72 |
| Working Tension | 120 |
| Weight (Lbs) | 0.066 |
| Min. Pulley Diameter (in) | 2 |
| Min. Temperature | 20 |
| Max. Temperature | 180 |
| Clipper | 2-SP |
| Staple | 125 |
| Fabric | Monofilament, Whisper Spun |
| Meets FDA Requirements | No |
| USDA Official Approval | No |
