GP312

Print This Page

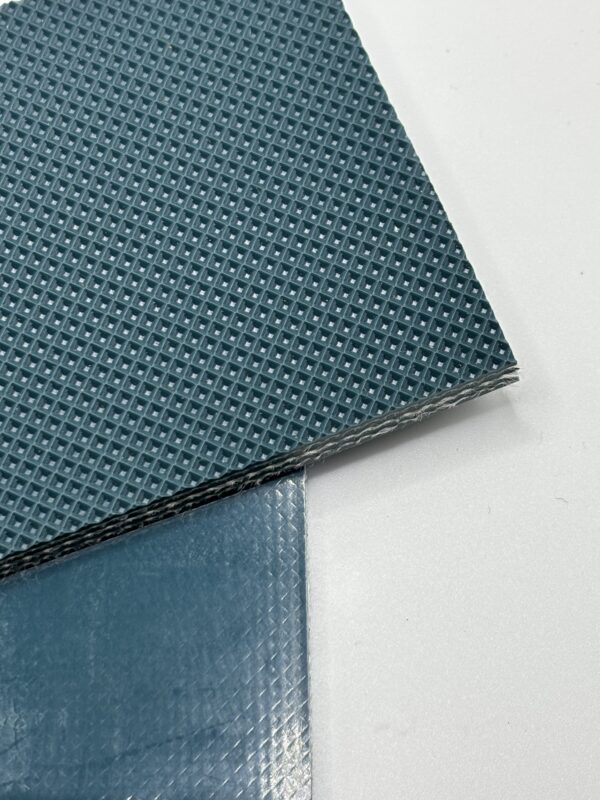

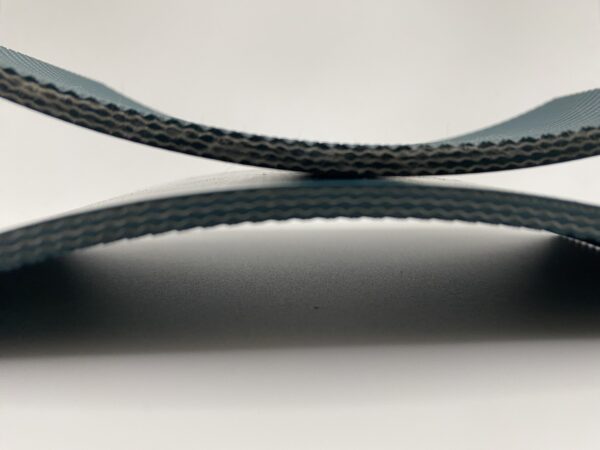

GP312 conveyor belt material fabricated by Shipp Belting Company. The belt compound is PVC with a smooth top surface and inverted diamond bottom surface.

Contact Us Directly for Immediate Assistance

(254) 776-0493

Belt Specifications

Belt Compound

Top Surface

Smooth

Bottom Surface

Inverted Diamond

Color

Green

Number of Plies

3

Nominal Thickness (in)

0.17

Anti-Static

No

Max. Width

100

Working Tension

74

Weight (Lbs)

0.922

Min. Pulley Diameter (in)

4

Min. Temperature

14

Max. Temperature

176

Clipper

U2

Staple

125

Fabric

Monofilament, Polyester

Meets FDA Requirements

No

USDA Official Approval

No
