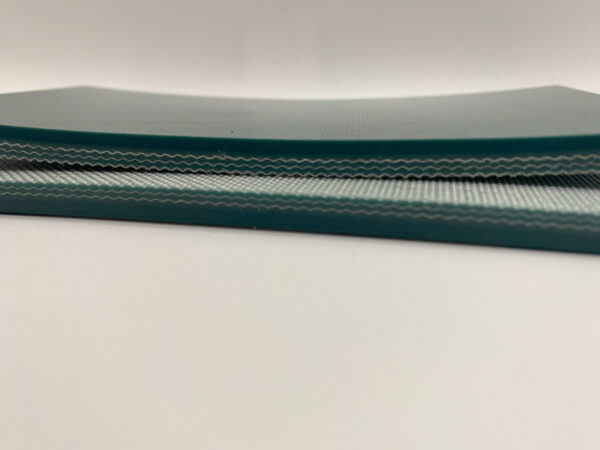

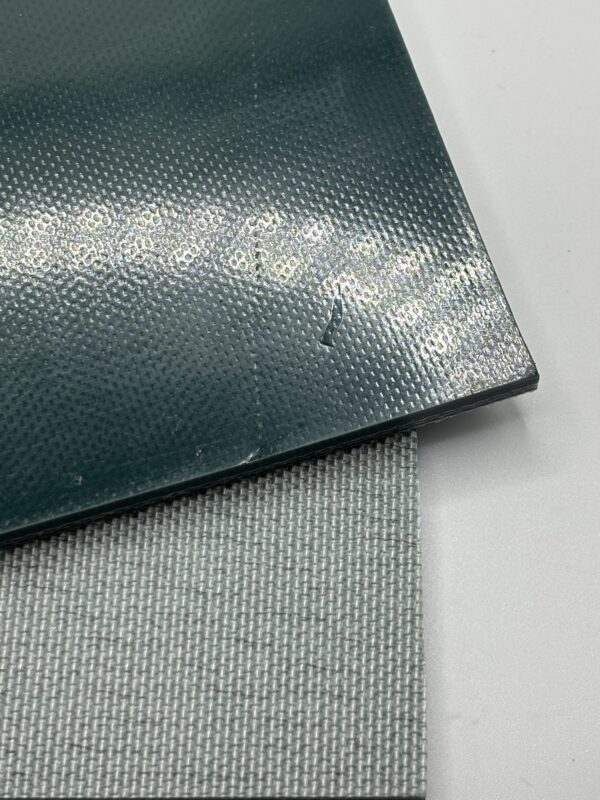

GP310 conveyor belt material fabricated by Shipp Belting Company. The belt compound is PVC with a smooth top surface and bare bottom surface.
GP310
Contact Us Directly for Immediate Assistance
Belt Specifications *
| Belt Compound | |
|---|---|
| Top Surface | Smooth |
| Bottom Surface | Bare |
| Color | Green |
| Number of Plies | 3 |
| Nominal Thickness (in) | 0.240 |
| Anti-Static | No |
| Max. Width | 78.74 |
| Fabric | Monofilament, Polyester |
| Working Tension | 91 |
| Weight (Lbs) | 0.125 |
| Min. Pulley Diameter (in) | 3.93 |
| Min. Temperature | 14 |
| Max. Temperature | 140 |
| Meets FDA Requirements | No |
| USDA Official Approval | No |
| Waco Stock | Yes |
