GP230

Print This Page

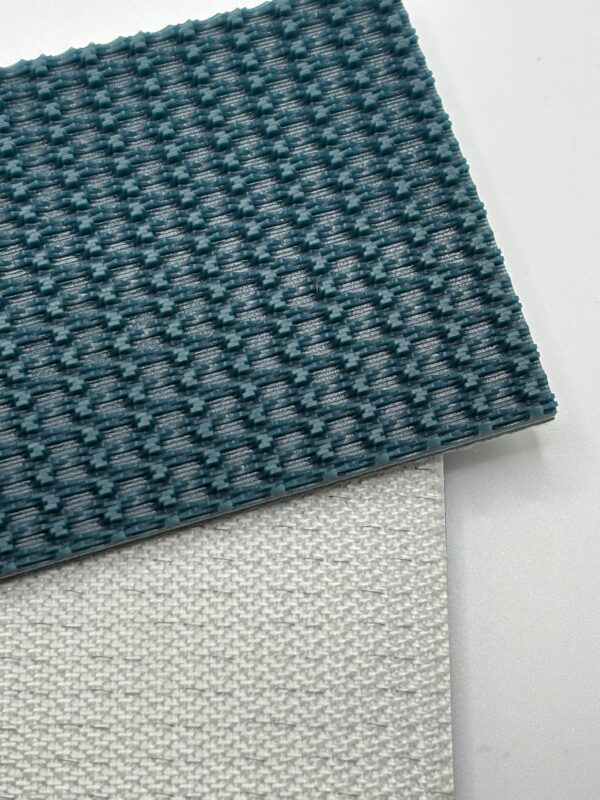

GP230 conveyor belt material fabricated by Shipp Belting Company. The belt compound is PVC with a rough top top surface and friction bottom surface.

Contact Us Directly for Immediate Assistance

(254) 776-0493

Belt Specifications *

Belt Compound

Top Surface

Rough Top

Bottom Surface

Friction

Color

Green

Number of Plies

2

Nominal Thickness (in)

0.209

Anti-Static

Yes

Max. Width

72

Working Tension

90

Weight (Lbs)

0.076

Min. Pulley Diameter (in)

2

Min. Temperature

14

Max. Temperature

176

Clipper

1-A

Staple

62

Fabric

Monofilament, Polyester

Meets FDA Requirements

No

USDA Official Approval

No
