G23R (Waffle Top)

Print This Page

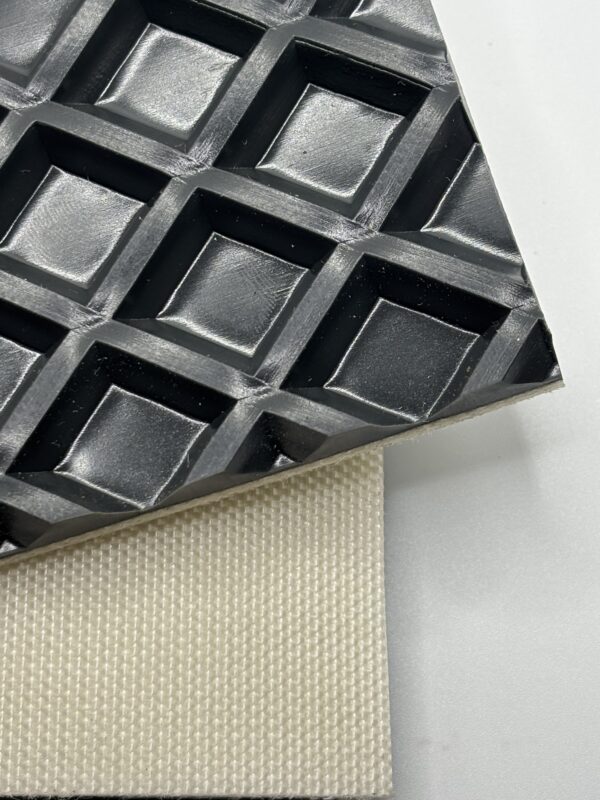

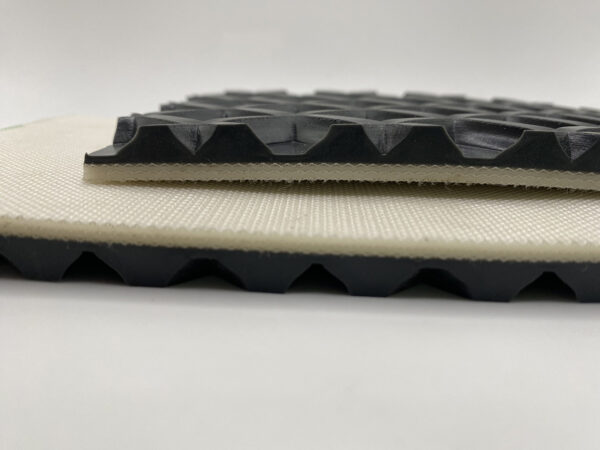

G23R (Waffle Top) conveyor belt material fabricated by Shipp Belting Company. The belt compound is PVC with a waffle top surface and friction bottom surface.

Contact Us Directly for Immediate Assistance

(254) 776-0493

Belt Specifications *

Belt Compound

Top Surface

Waffle

Bottom Surface

Friction

Color
Number of Plies

3

Nominal Thickness (in)

0.37

Anti-Static

No

Max. Width

78.7

Working Tension

103

Weight (Lbs)

0.137

Min. Pulley Diameter (in)

4.72

Min. Temperature

-22

Max. Temperature

212

Clipper

U4

Staple

187

Fabric

Monofilament, Polyester

Meets FDA Requirements

No

USDA Official Approval

No
