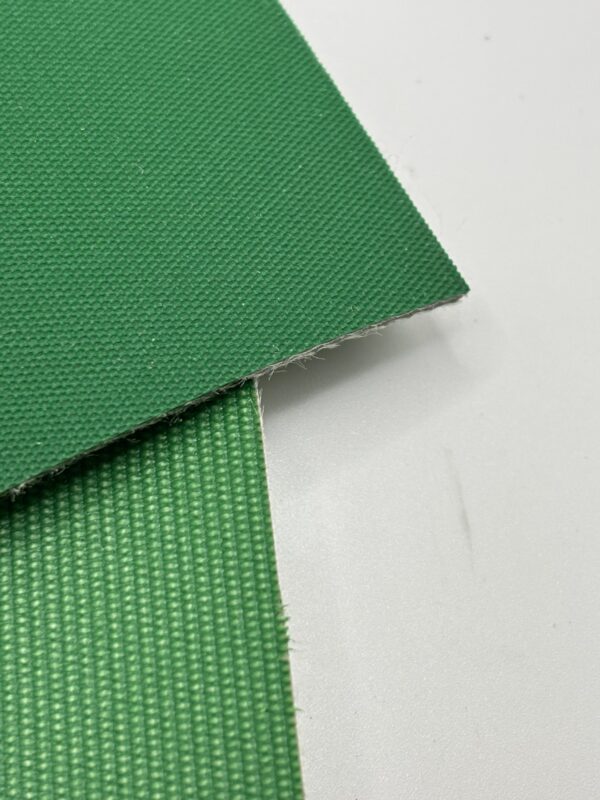

The F-2 Habasit Belt is a static conducting conveyor belt fabricated by Shipp Belting Company. It features an NBR compound with a smooth top surface and impregnated bottom surface.
The F-2 Habasit Belt is designed for general conveying and accumulation on a smooth top surface, with anti-static properties that help limit static buildup. Its 2 ply polyamide construction provides a 182 PIW working tension rating, with a 0.07 inch overall thickness for flexibility around small pulleys. With a 2.4 inch minimum pulley diameter and temperature range of -4°F to 212°F, it offers dependable service across a wide temperature span.
Key Features
- 2 ply polyamide construction, 182 PIW working tension
- Smooth top surface for general conveying and accumulation
- Impregnated bottom surface, 0.07 inch overall thickness
- NBR compound, anti-static
- 2.4 inch minimum pulley diameter
