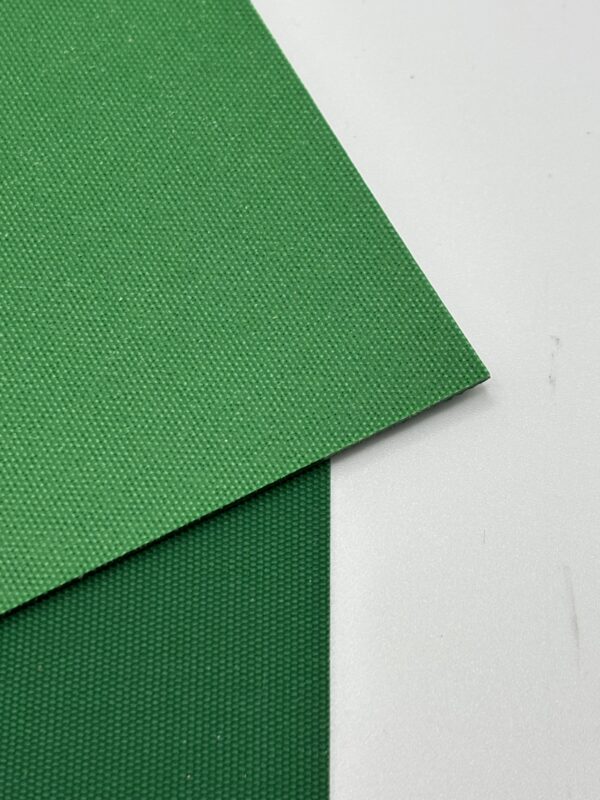

The F-1 Habasit Belt is a static conducting conveyor belt fabricated by Shipp Belting Company. It features an NBR compound with a smooth top surface and impregnated bottom surface.
The F-1 Habasit Belt is designed to carry material on a smooth top surface, with anti-static properties that help limit static buildup. Its 2 ply polyamide construction provides a 98 PIW working tension rating, with a 0.05 inch overall thickness for flexibility around small pulleys. With a 1.6 inch minimum pulley diameter and temperature range of -4°F to 212°F, it maintains steady operation across varied conditions.
Key Features
- 2 ply polyamide construction, 98 PIW working tension
- Smooth top surface, impregnated bottom surface
- 0.05 inch overall thickness
- NBR compound, anti-static
- 1.6 inch minimum pulley diameter
