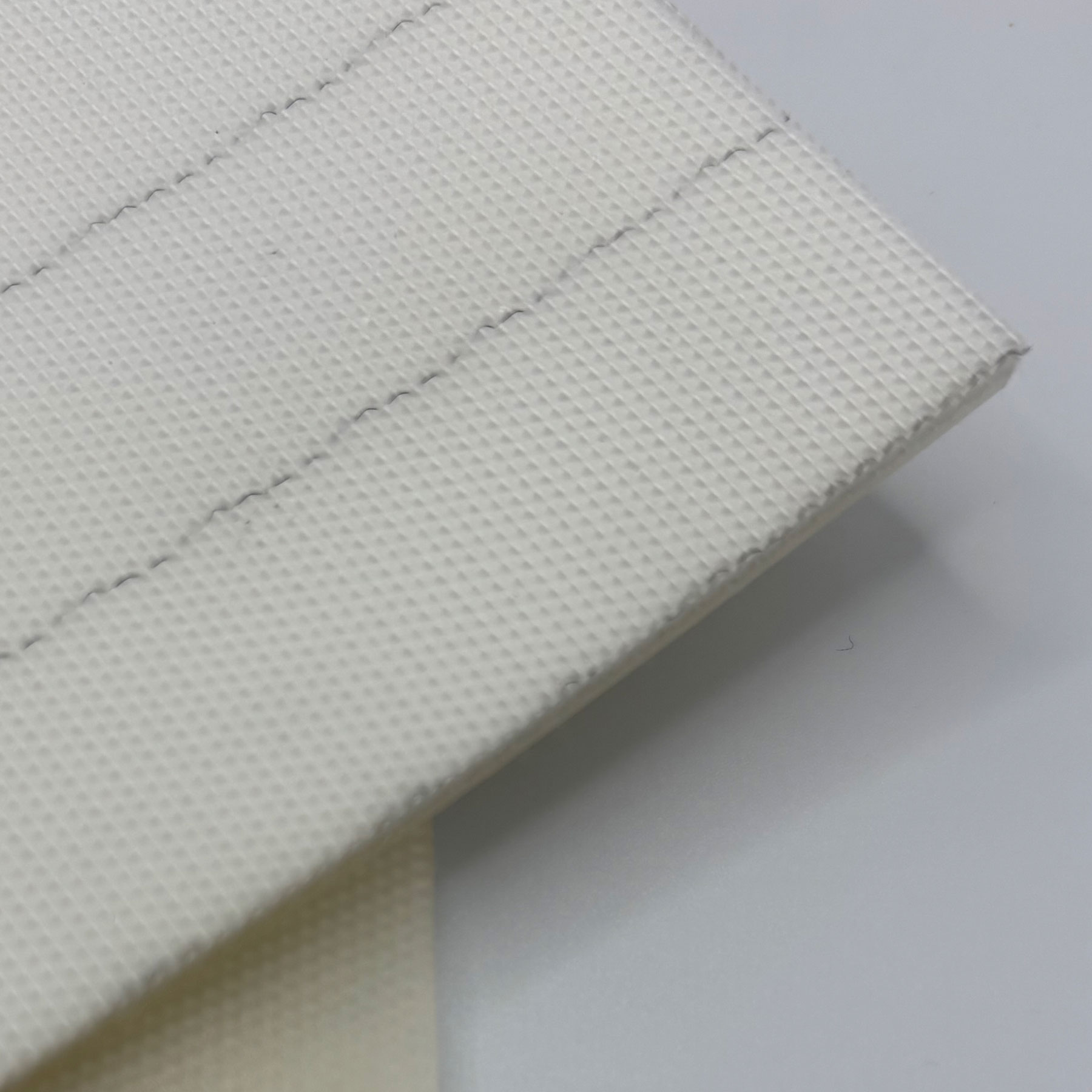

The CU210HC-AS Conveyor Belt is a food grade conveyor belt fabricated by Shipp Belting Company. It features a polyurethane (TPU) compound with a smooth TPU top surface and a fabric bottom surface with TPU impregnation.
The CU210HC-AS Conveyor Belt is designed to carry material on a smooth TPU top surface, and it meets FDA requirements with anti-static properties that help limit static buildup. Its 2 ply polyester construction provides a 137 PIW working tension rating, with a 0.17 inch overall thickness. With a 1.57 inch minimum pulley diameter and temperature range of -4°F to 212°F, it performs reliably across a broad temperature span.
Key Features
- 2 ply polyester construction, 137 PIW working tension
- Smooth TPU top surface
- Fabric bottom surface with TPU impregnation, 0.17 inch overall thickness
- Polyurethane (TPU) compound, anti-static
- Meets FDA requirements
- 1.57 inch minimum pulley diameter
