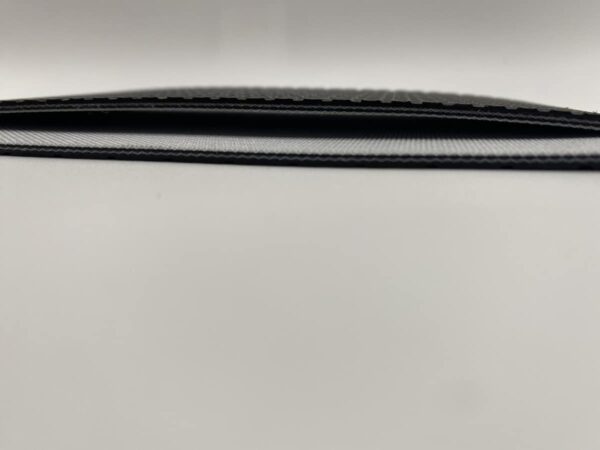

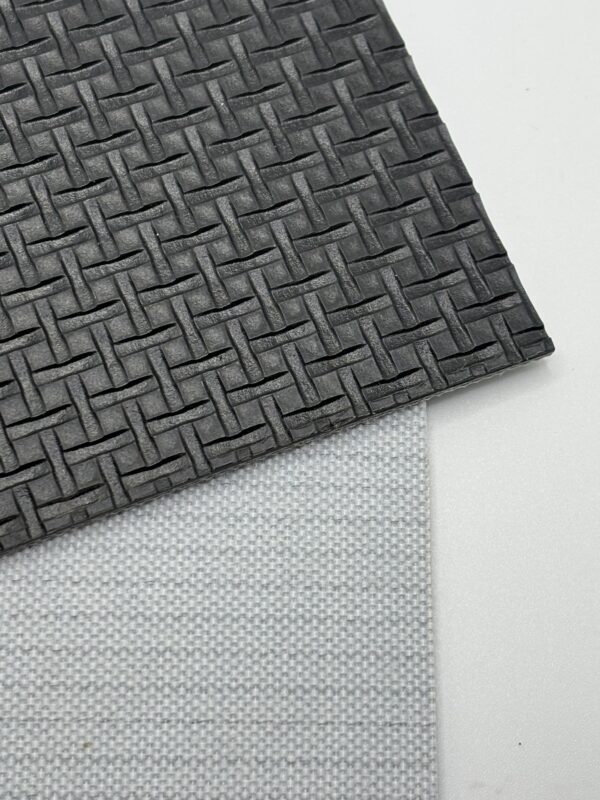

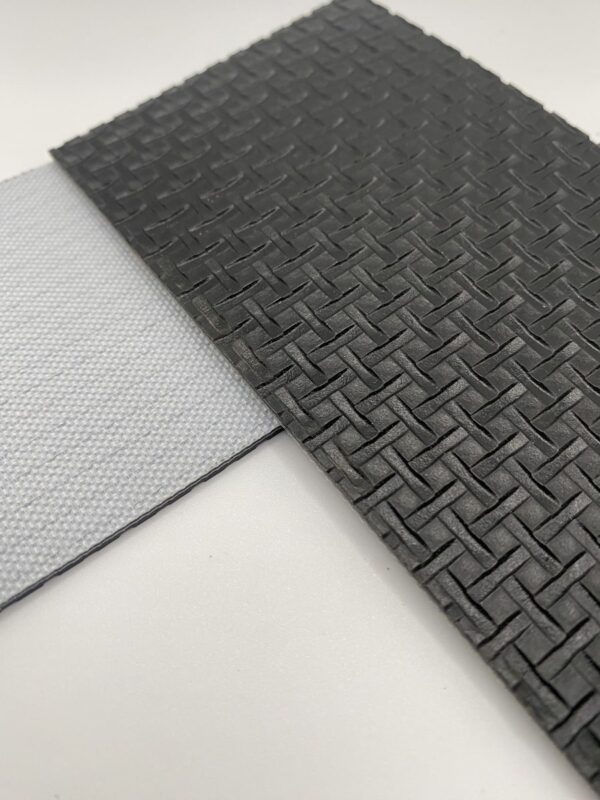

BP270 conveyor belt material fabricated by Shipp Belting Company. The belt compound is Polyurethane with a lattice top top surface and friction bottom surface.
BP270
Contact Us Directly for Immediate Assistance
Belt Specifications *
| Belt Compound | |
|---|---|
| Top Surface | Lattice Top |
| Bottom Surface | Friction |
| Color | Black |
| Number of Plies | 2 |
| Nominal Thickness (in) | 0.1 |
| Anti-Static | Yes |
| Max. Width | 118 |
| Working Tension | 90 |
| Weight (Lbs) | 0.05 |
| Min. Pulley Diameter (in) | 1.75 |
| Min. Temperature | 14 |
| Max. Temperature | 176 |
| Clipper | UX1 |
| Staple | 62 |
| Fabric | Monofilament, Polyester |
| Meets FDA Requirements | No |
| USDA Official Approval | No |
