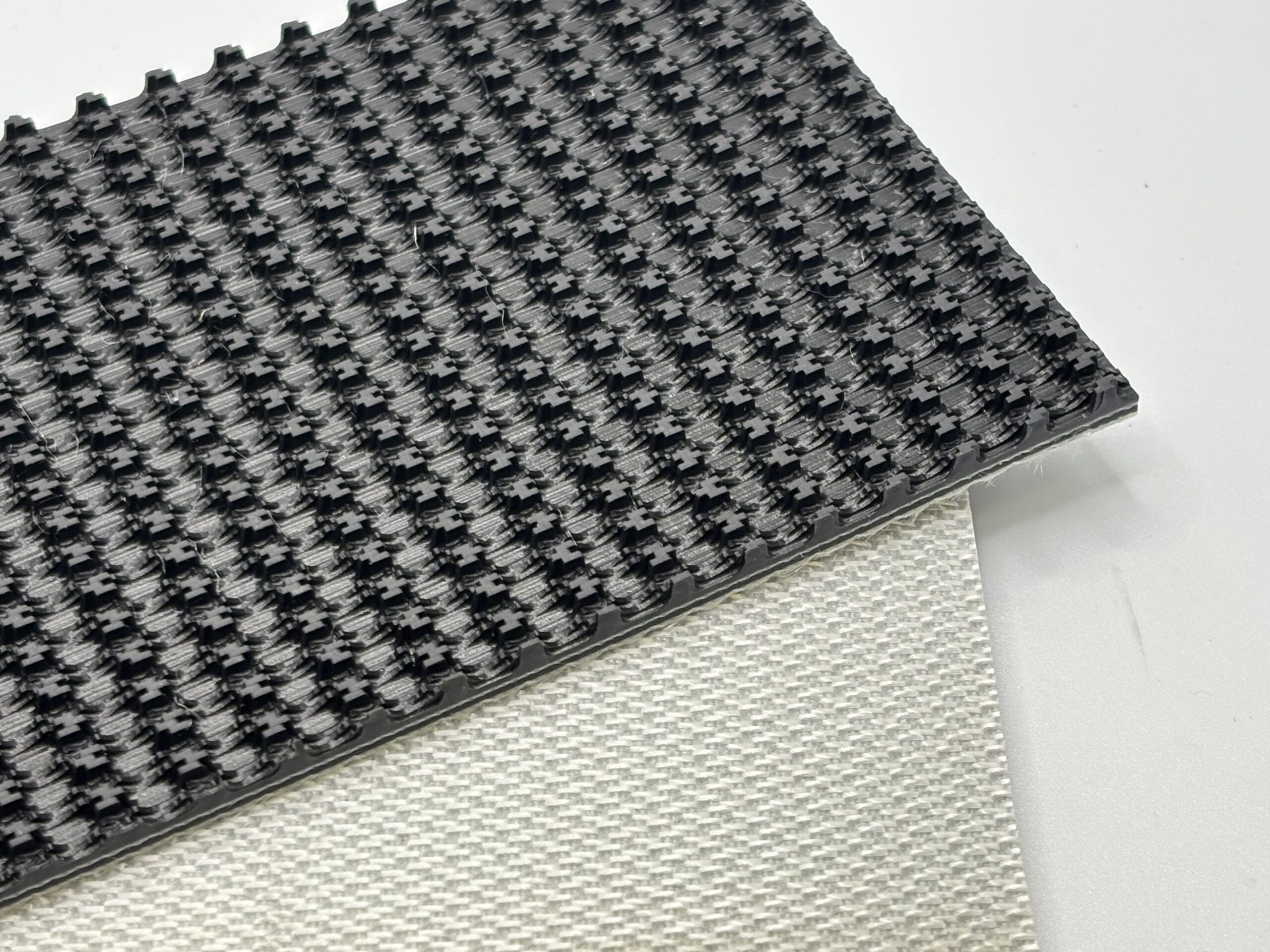

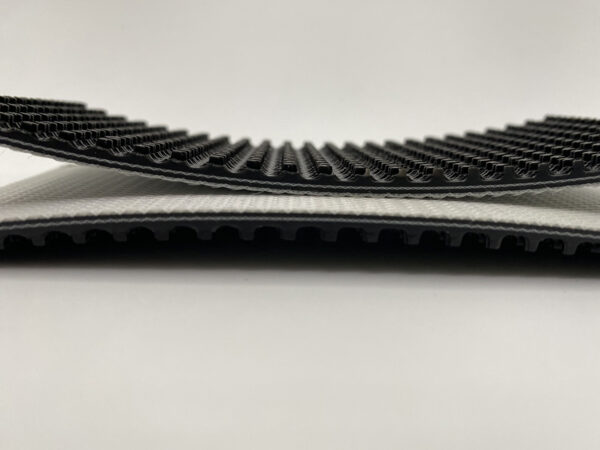

The BP230 Conveyor Belt is a static conducting conveyor belt fabricated by Shipp Belting Company. It features a PVC compound with a rough top surface and friction bottom surface.
The BP230 Conveyor Belt is designed to grip and carry material on inclines without slipback, with anti-static properties that help limit static buildup. Its 2 ply monofilament and polyester construction provides a 90 PIW working tension rating, with a 0.209 inch overall thickness for flexibility around small pulleys. With a 2 inch minimum pulley diameter and temperature range of 14°F to 176°F, it keeps product moving reliably on angled runs.
Key Features
- 2 ply monofilament and polyester construction, 90 PIW working tension
- Rough top surface for grip on inclines
- Friction bottom surface, 0.209 inch overall thickness
- PVC compound, anti-static
- 2 inch minimum pulley diameter
