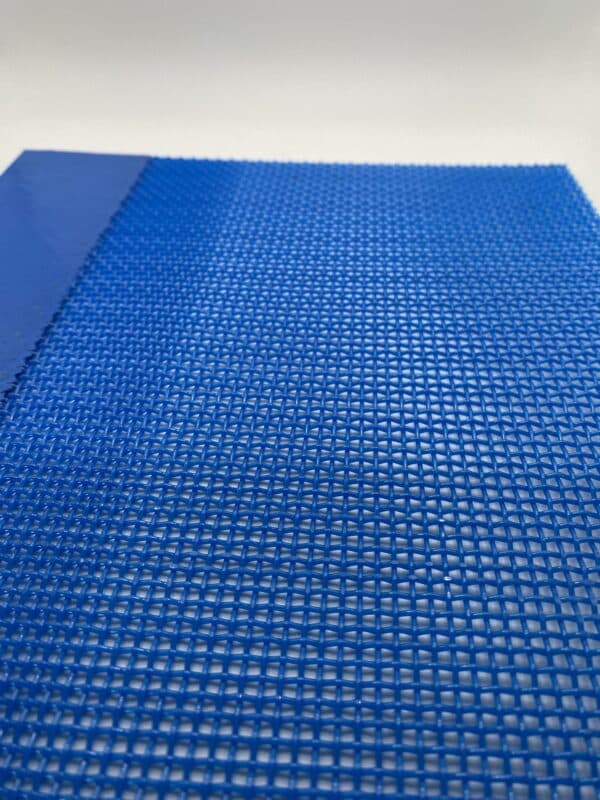

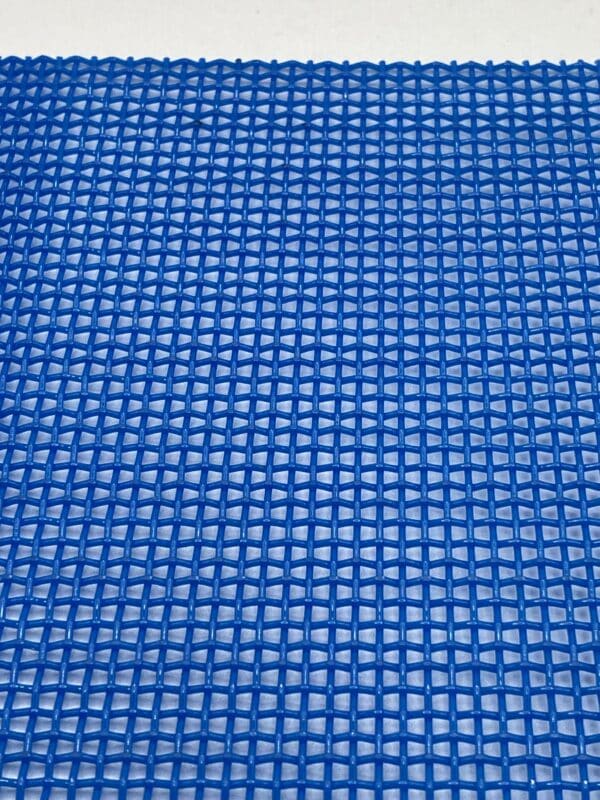

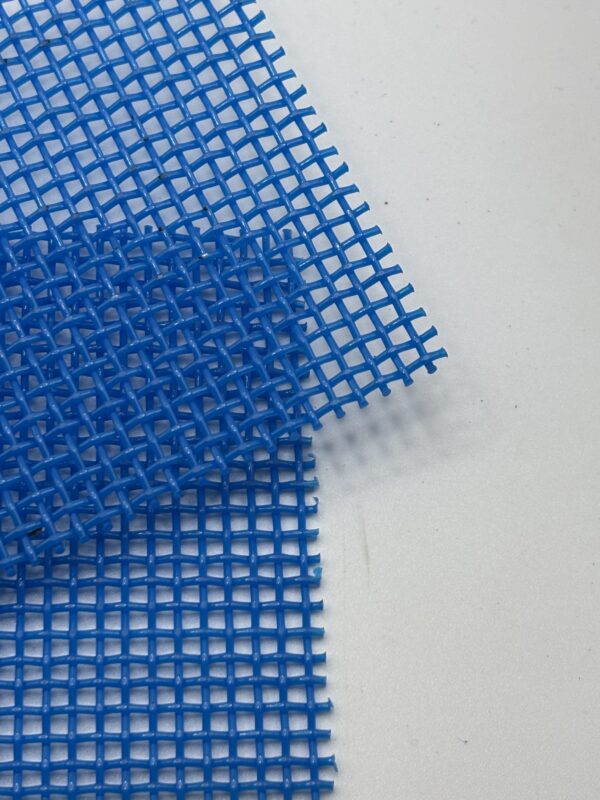

Blue Mesh 2X2 conveyor belt material fabricated by Shipp Belting Company. The belt compound is Polyester with a mesh top surface and mesh bottom surface.
Blue Mesh 2X2
Contact Us Directly for Immediate Assistance
Belt Specifications
| Belt Compound | |
|---|---|
| Top Surface | Mesh |
| Bottom Surface | Mesh |
| Color | Blue |
| Number of Plies | No Plies |
| Nominal Thickness (in) | 0.079 |
| Anti-Static | No |
| Max. Width | 114 |
| Working Tension | 45.6 |
| Weight (Lbs) | 0.4 |
| Min. Pulley Diameter (in) | 4 |
| Min. Temperature | 32 |
| Max. Temperature | 176 |
| Staple | 62 |
| Fabric | Polyester |
| Meets FDA Requirements | Yes |
| USDA Official Approval | No |
