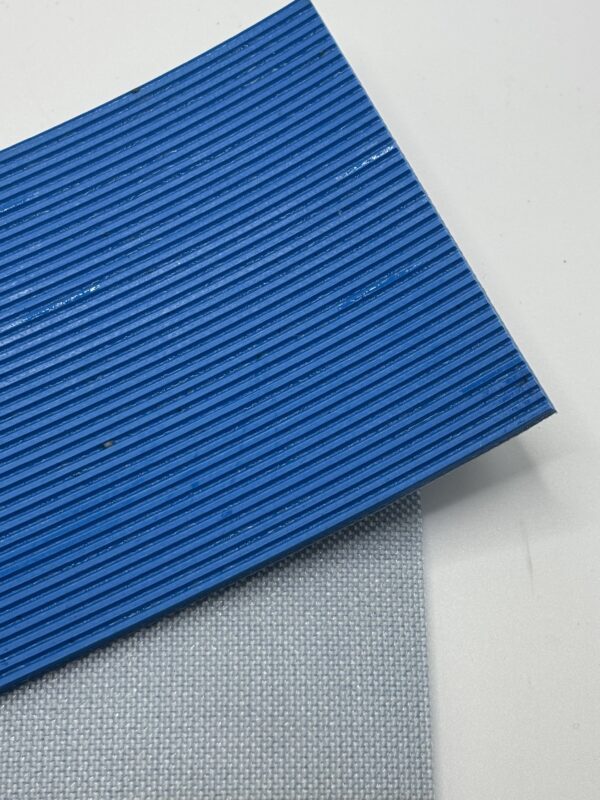

BLP290 conveyor belt material fabricated by Shipp Belting Company. The belt compound is PVC with a longitudinal rib top surface and friction bottom surface.
BLP290
Contact Us Directly for Immediate Assistance
Belt Specifications
| Belt Compound | |
|---|---|
| Top Surface | Longitudinal Rib |
| Bottom Surface | Friction |
| Color | Blue |
| Number of Plies | 2 |
| Nominal Thickness (in) | 0.12 |
| Anti-Static | Yes |
| Max. Width | 48 |
| Working Tension | 90 |
| Weight (Lbs) | 0.05 |
| Min. Pulley Diameter (in) | 1.5 |
| Min. Temperature | 14 |
| Max. Temperature | 176 |
| Clipper | UCM36 |
| Staple | 62 |
| Fabric | Monofilament, Polyester |
| Meets FDA Requirements | No |
| USDA Official Approval | No |
