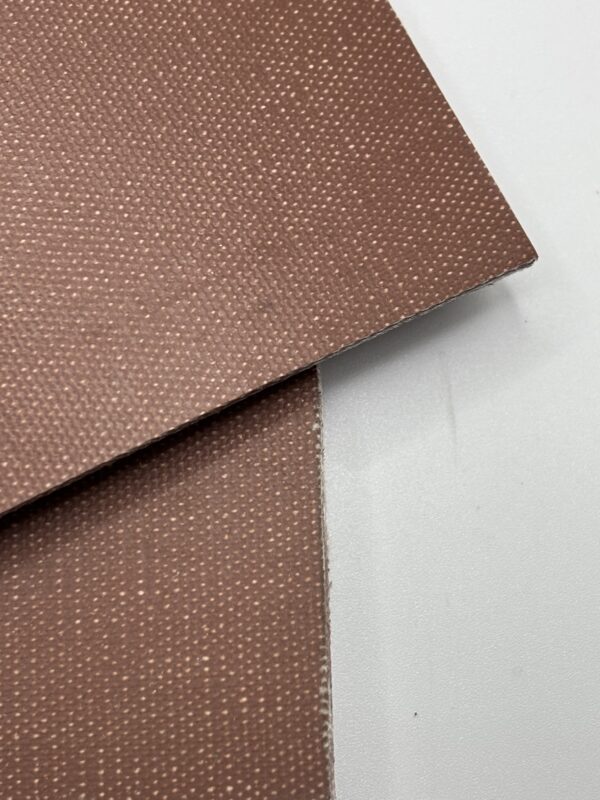

The 78-N-F&F Conveyor Belt is a food grade conveyor belt fabricated by Shipp Belting Company. It features a nitrile compound with a bare top surface and bare bottom surface.
The 78-N-F&F Conveyor Belt is designed for conveying where an FDA compliant belt material is required. Its 7 ply cotton and polyester construction provides a 98 PIW working tension rating, with a 0.147 inch overall thickness. With a 3 inch minimum pulley diameter and temperature range of 10°F to 250°F, it holds consistent performance from cool to hot operating conditions.
Key Features
- 7 ply cotton and polyester construction, 98 PIW working tension
- Meets FDA requirements
- Bare top and bare bottom surfaces
- 0.147 inch overall thickness
- Nitrile compound
- 3 inch minimum pulley diameter
