4 PLY 440 1/4 x 1/16

Print This Page

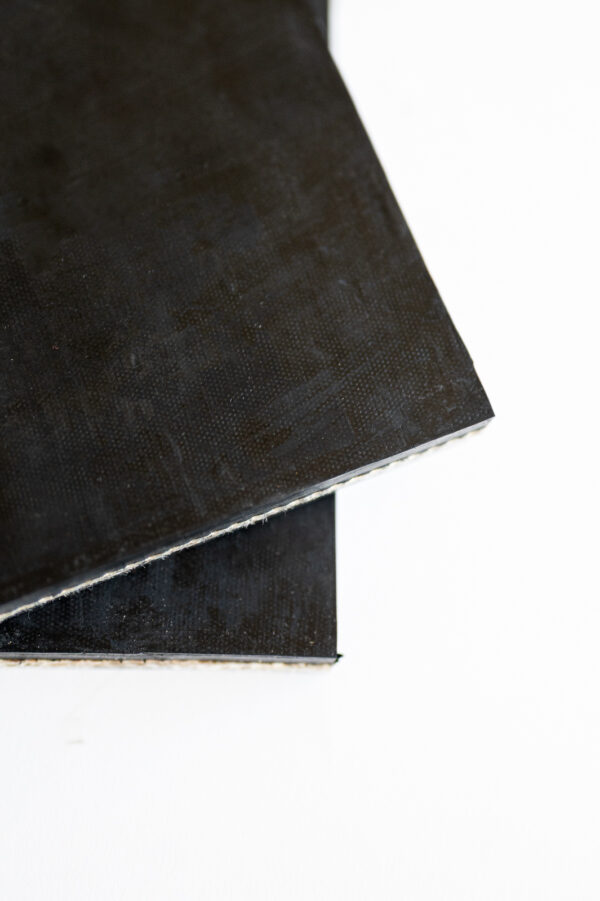

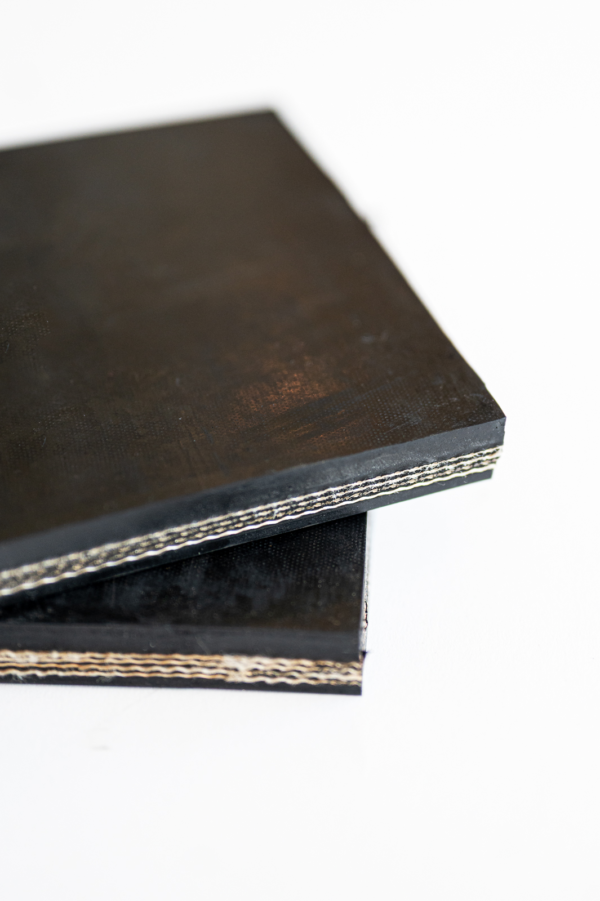

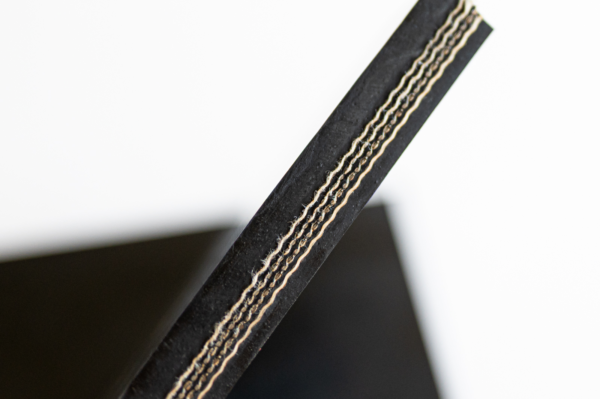

440 1/4 x 1/16 4 Ply conveyor belt material fabricated by Shipp Belting Company. The belt compound is SBR rubber with a smooth top surface and smooth bottom surface.

The 4 Ply 440 SBR Rubber Conveyor Belt is designed for heavy duty material handling applications that require dependable strength and abrasion resistance. Built with a 440 PIW working tension rating, durable 4 ply construction, and a 1/4 inch top cover, this belt provides reliable performance in demanding conveying environments. It is well suited for aggregate, recycling, wood processing, construction, and other industrial applications where durability and long service life are essential.

Contact Us Directly for Immediate Assistance

(254) 776-0493

Belt Specifications *

Belt Compound

Top Surface

SBR

Bottom Surface

SBR

Color

Black

Number of Plies

4

Nominal Thickness (in)

.500

Anti-Static

No

Max. Width

84

Working Tension

440

Weight (Lbs)

.270

Min. Pulley Diameter (in)

16

Min. Temperature

-20

Max. Temperature

250

Fastener

R5; 550; 190

Fabric

Polyester / Nylon

Meets FDA Requirements

No

USDA Official Approval

No

Safety Factor

10:1

Waco Stock

Yes
