440- 1/4 X 1/16 RC GR1

Print This Page

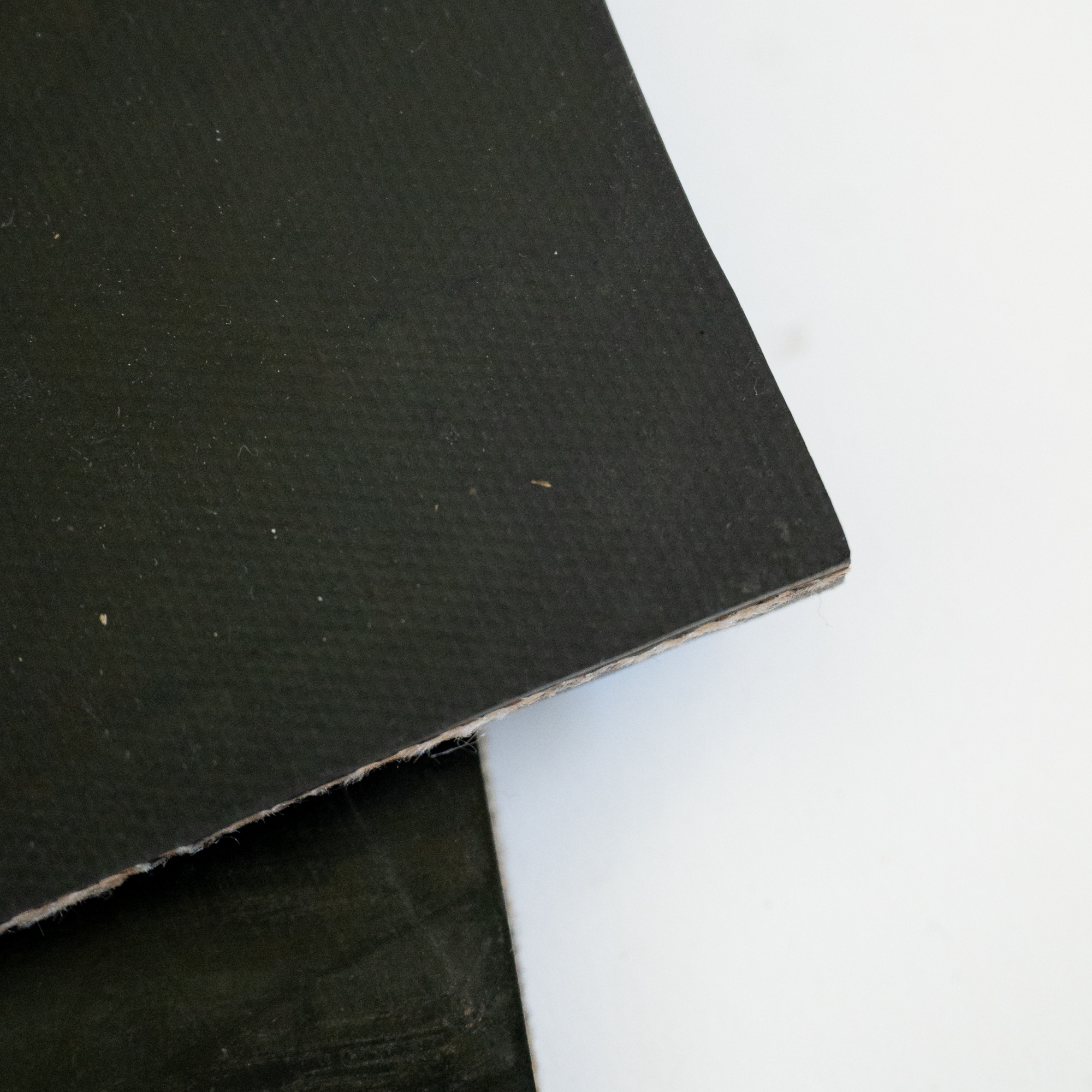

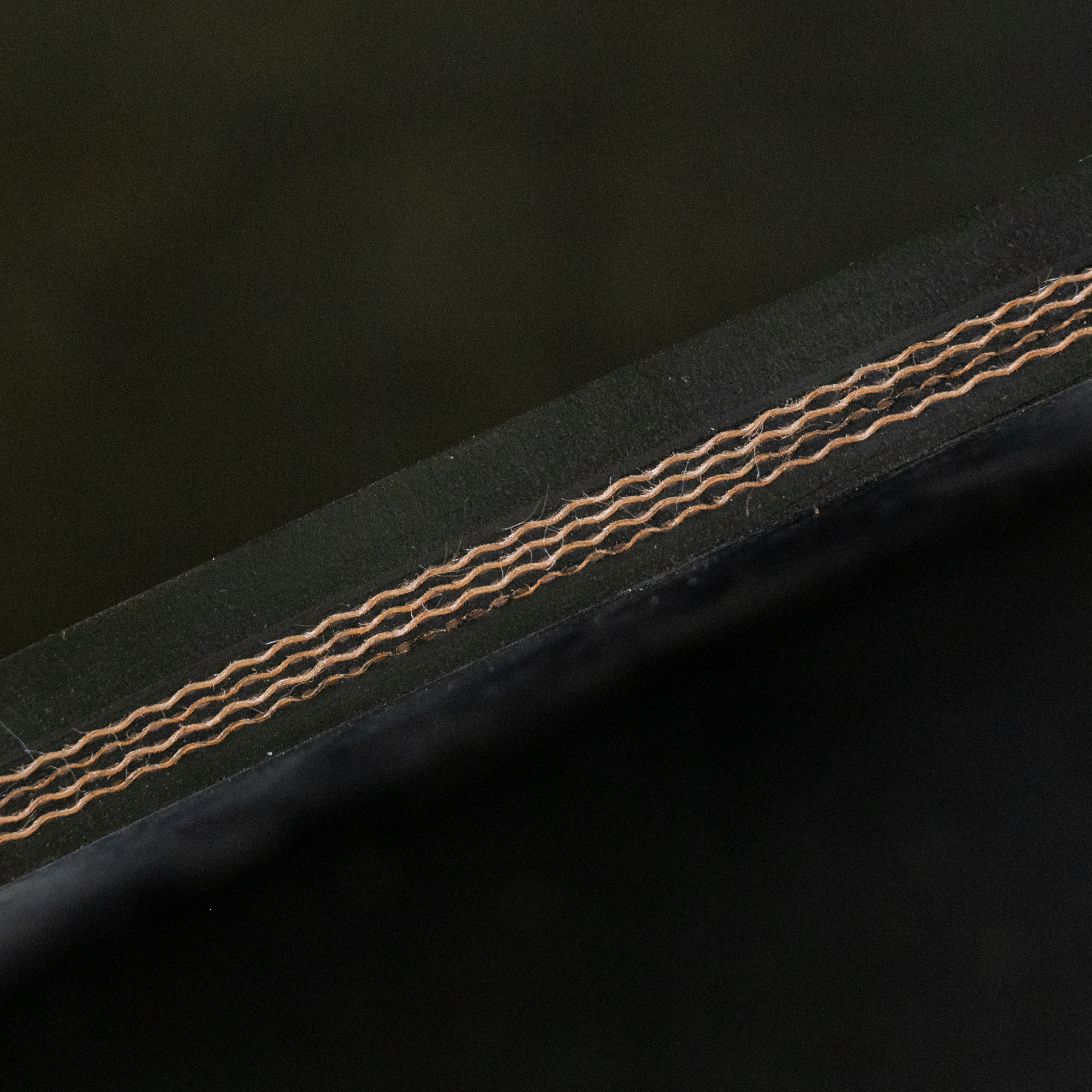

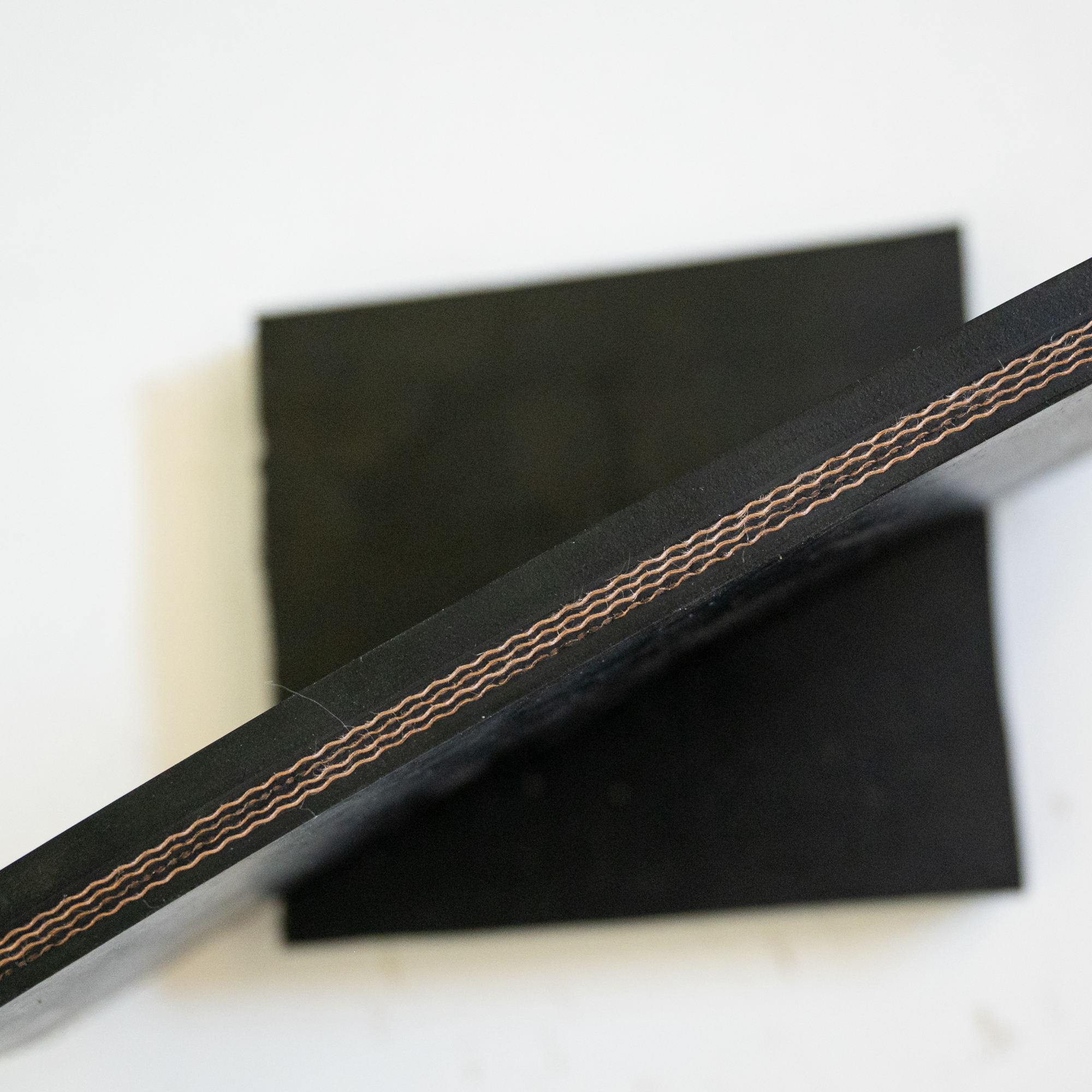

440 1/4 x 1/16 4 Ply conveyor belt material fabricated by Shipp Belting Company. The belt compound is RMA1 rubber with a smooth top surface and smooth bottom surface.

The 4 Ply 440 RMA1 Rubber Conveyor Belt is built for heavy duty conveying applications that demand superior strength and abrasion resistance. Featuring a 440 PIW working tension rating, premium RMA1 rubber compound, and a thick 1/4 inch top cover, this belt is designed to withstand harsh operating conditions and high impact material handling. It is ideal for aggregate, quarry, mining, recycling, and other demanding industrial applications.

Contact Us Directly for Immediate Assistance

(254) 776-0493

Belt Specifications *

Belt Compound

Top Surface

Smooth

Bottom Surface

Smooth

Color

Black

Number of Plies

4

Nominal Thickness (in)

.504

Anti-Static

No

Max. Width

126

Working Tension

440

Min. Pulley Diameter (in)

20

Min. Temperature

14

Max. Temperature

158

Fabric

Polyester / Nylon

Waco Stock

Yes
