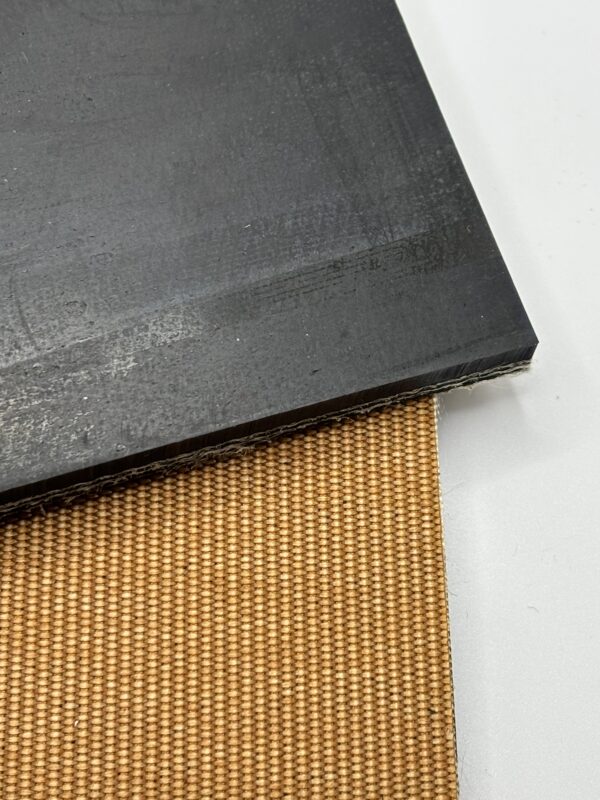

The 330 3/16 x 1/16 Conveyor Belt is a general purpose conveyor belt fabricated by Shipp Belting Company. It features a rubber compound with a smooth top surface and covered bottom surface.

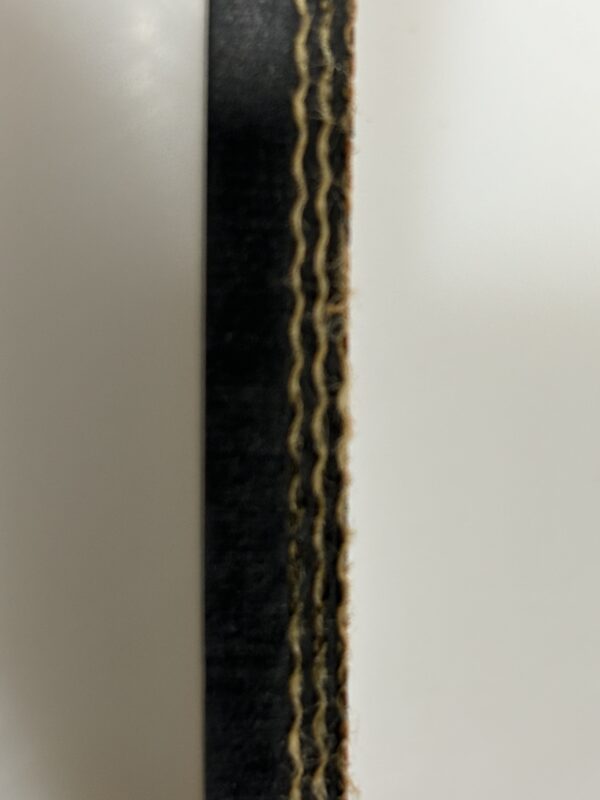

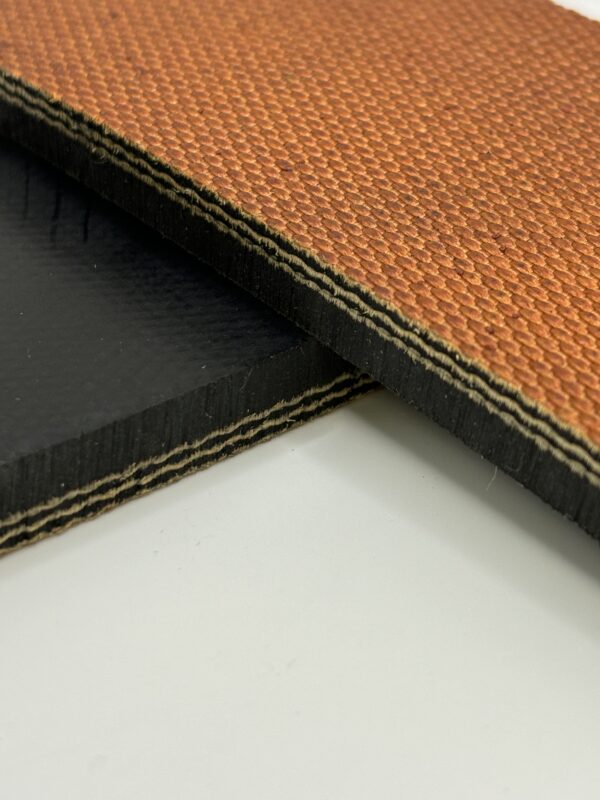

The 330 3/16 x 1/16 Conveyor Belt is designed for general industrial conveying applications requiring dependable working tension. Its 3 ply nylon and polyester construction provides a 330 PIW working tension rating, with a 3/16 inch top cover and 1/16 inch bottom cover for consistent material flow. With an 18 inch minimum pulley diameter and temperature range of minus 30°F to 200°F, it offers steady performance across a variety of industrial applications.
Key Features
- 3 ply construction with 330 PIW working tension
- Smooth top surface with 3/16 inch cover
- Bare bottom surface for slider bed travel
- SBR rubber compound
- 16 inch minimum pulley diameter
Common Applications
Slider bed conveyor systems and other heavyweight material handling operations where a bare bottom surface is required.
