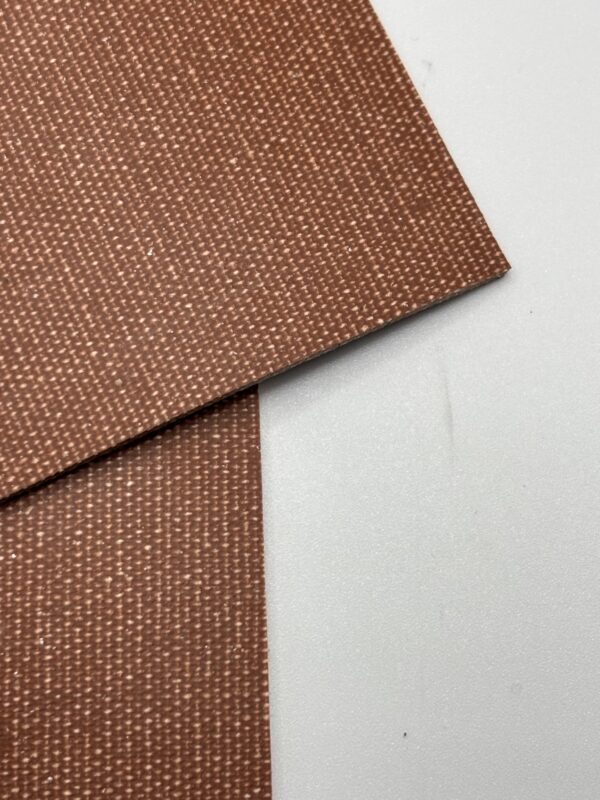

The 38-N-F&F Conveyor Belt is a food grade conveyor belt fabricated by Shipp Belting Company. It features a nitrile compound with a bare top surface and bare bottom surface.
The 38-N-F&F Conveyor Belt is designed for conveying where a belt meeting FDA requirements is specified. Its 3 ply cotton and polyester construction provides a 42 PIW working tension rating, with a 0.061 inch overall thickness for flexibility around very small pulleys. With a 0.5 inch minimum pulley diameter and temperature range of 10°F to 250°F, it runs reliably across a broad span of operating conditions.
Key Features
- 3 ply cotton and polyester construction, 42 PIW working tension
- Meets FDA requirements
- Bare top and bare bottom surfaces
- 0.061 inch overall thickness
- Nitrile compound
- 0.5 inch minimum pulley diameter
