330 3/16 X BARE MOR

Print This Page

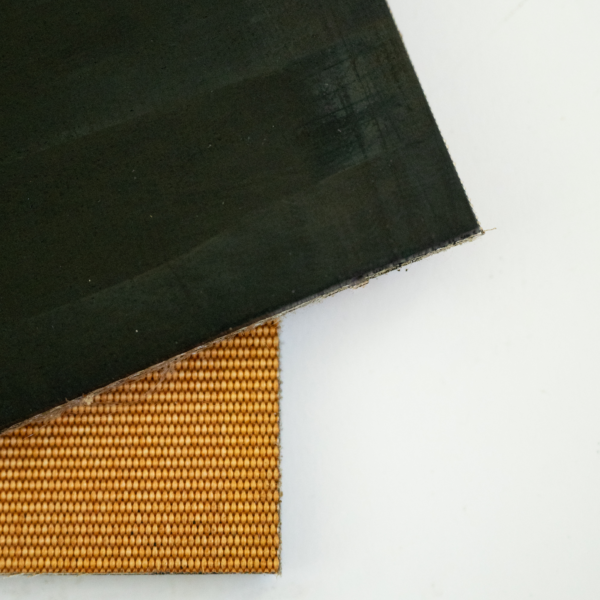

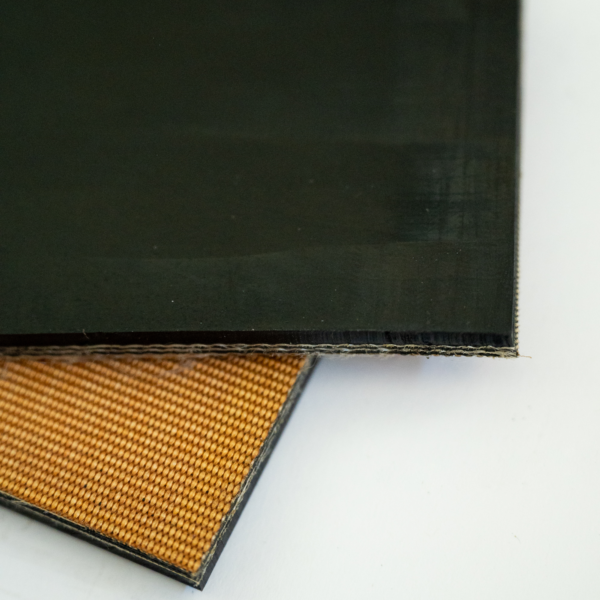

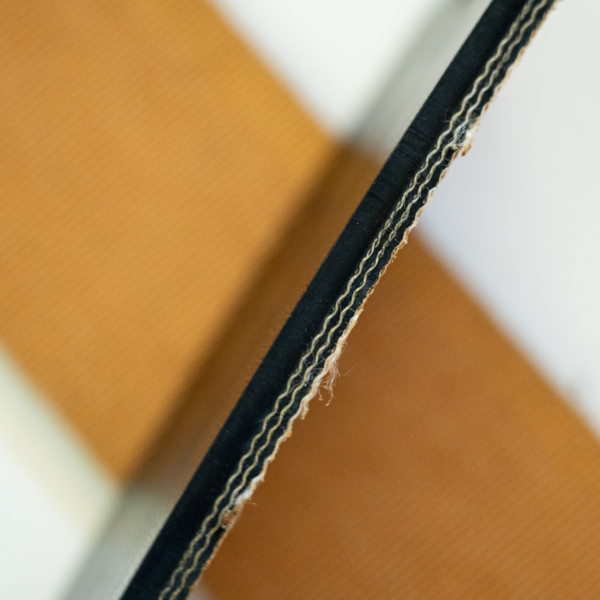

The 3 Ply 330 MOR Rubber Conveyor Belt is a general purpose conveyor belt fabricated by Shipp Belting Company with an MOR rubber compound, smooth top surface, and smooth bottom surface.

The 3 Ply 330 MOR Rubber Conveyor Belt is designed for material handling applications where abrasion and moderate oil exposure are present. Built with a 330 PIW working tension rating, MOR rubber compound, and a 3/16 inch top cover, it provides dependable strength and wear resistance for demanding conveying environments. Strong cover and ply adhesion further support durability in aggregate, recycling, wood processing, and general industrial applications.

Contact Us Directly for Immediate Assistance

(254) 776-0493

Belt Specifications *

Belt Compound

Top Surface

Smooth

Bottom Surface

Bare

Number of Plies

3

Nominal Thickness (in)

0.265

Working Tension

330

Weight (Lbs)

0.145

Min. Pulley Diameter (in)

16

Min. Temperature

-25

Max. Temperature

225

Fabric

Polyester / Nylon
