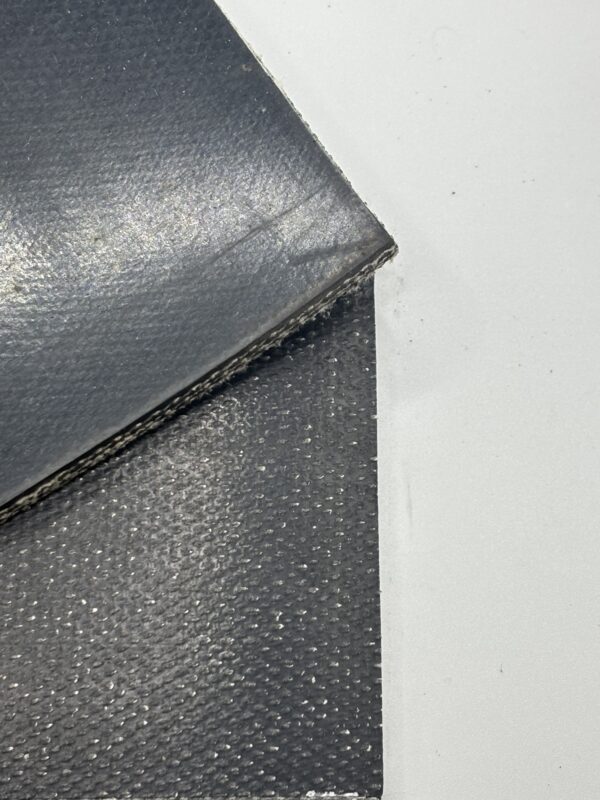

The 328-BOS Conveyor Belt is a light duty conveyor belt fabricated by Shipp Belting Company. It features a nitrile compound with a smooth top surface and bare bottom surface.
The 328-BOS Conveyor Belt is designed for general conveying and accumulation on a smooth top surface. Its 3 ply cotton and polyester construction provides a 90 PIW working tension rating, with a 0.188 inch overall thickness. With a 3 inch minimum pulley diameter and temperature range of 10°F to 250°F, it delivers steady performance across a wide span of operating conditions.
Key Features
- 3 ply cotton and polyester construction, 90 PIW working tension
- Smooth top surface for general conveying and accumulation
- Bare bottom surface, 0.188 inch overall thickness
- Nitrile compound
- 3 inch minimum pulley diameter
