600- 3/8 X 1/8 RC 3PLY DINX

Print This Page

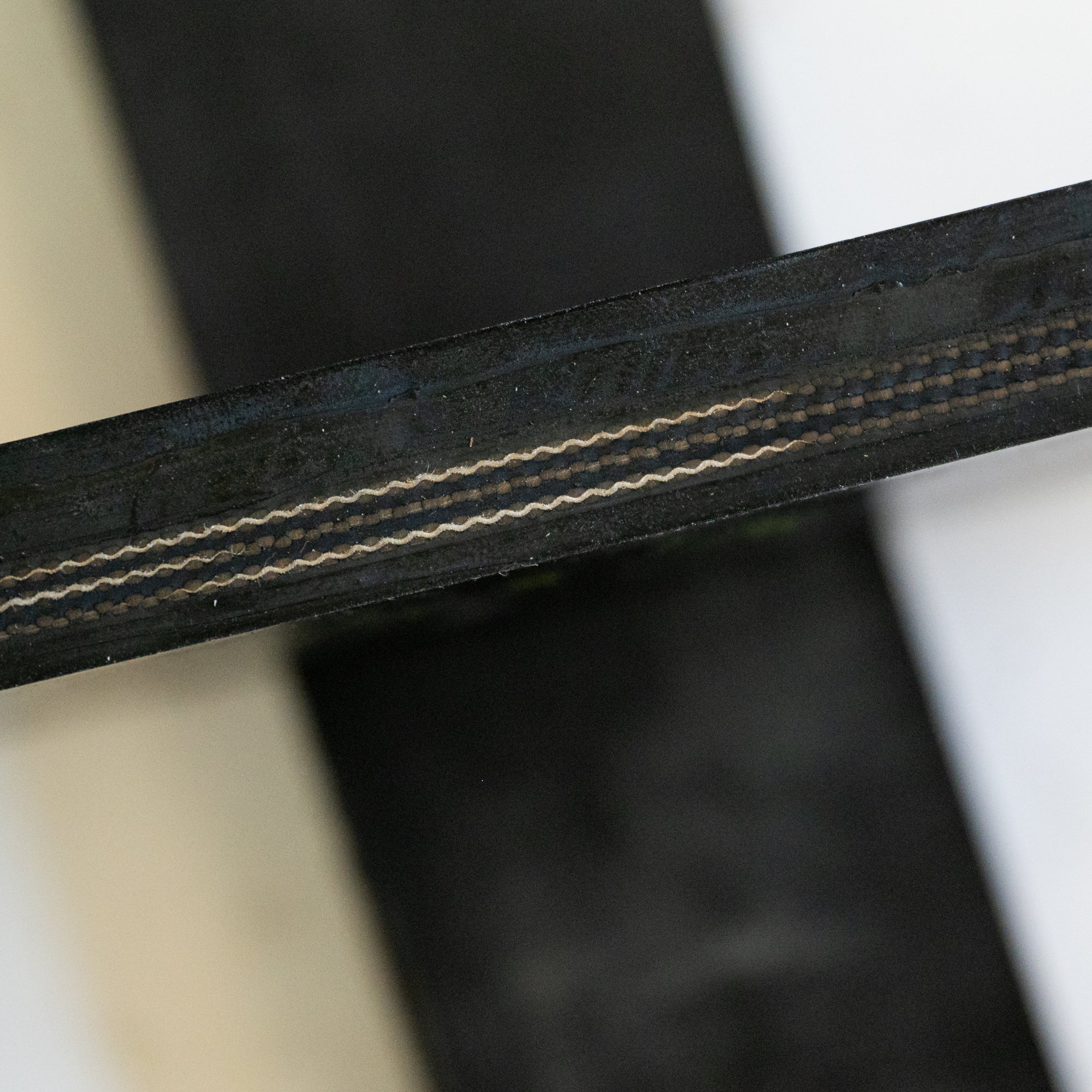

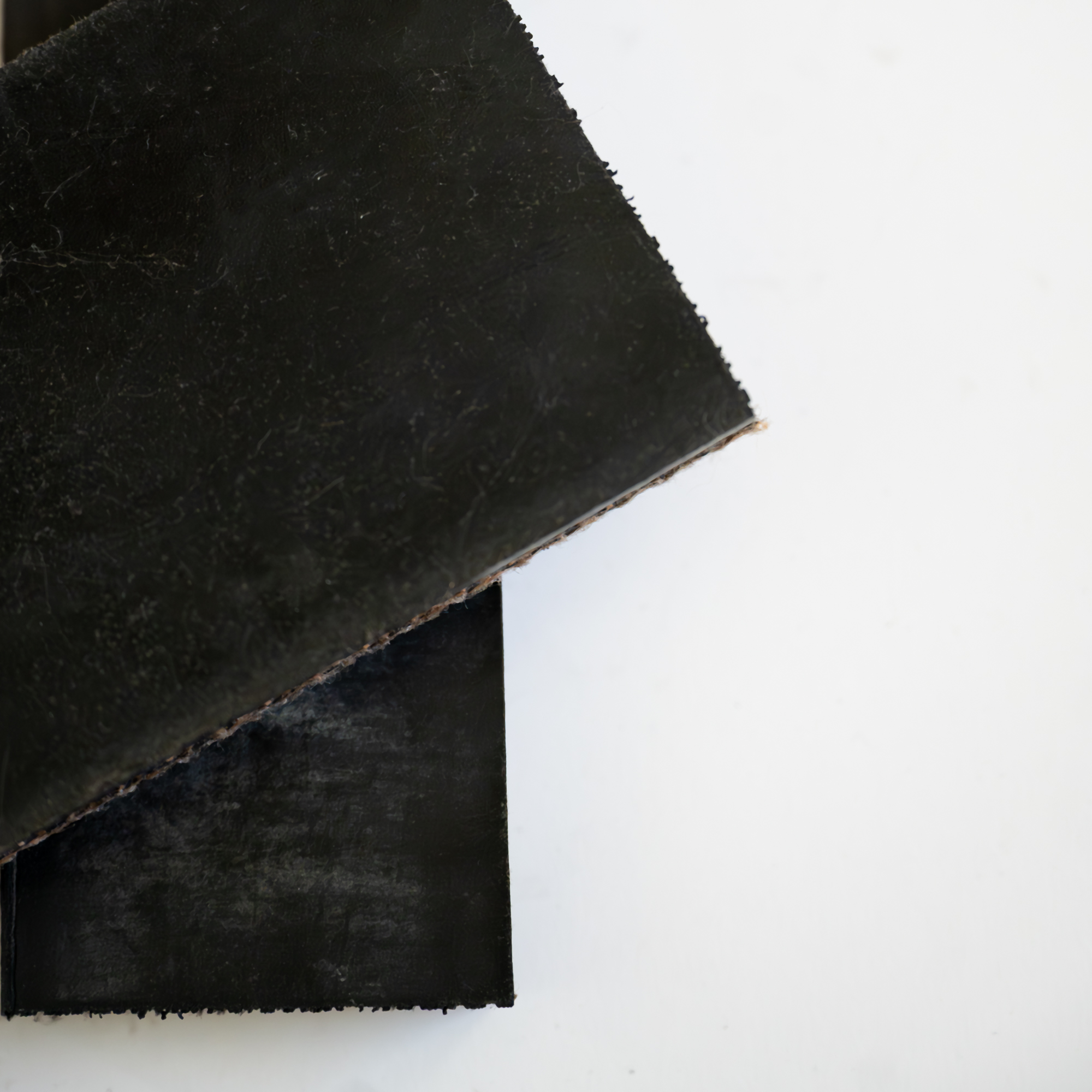

The 3 Ply 600 DIN X RC Conveyor Belt is a heavy duty conveyor belt fabricated by Shipp Belting Company. It features a DIN X rubber compound with a smooth top surface and smooth bottom surface.

The 3 Ply 600 DINX Rubber Conveyor Belt is engineered for severe duty conveying applications that require exceptional abrasion resistance and high tensile strength. Built with a 600 PIW working tension rating, premium DINX rubber compound, and a heavy 3/8 inch top cover, this belt is designed to withstand extreme wear and high impact material handling environments. It is ideal for mining, quarry, aggregate, and other demanding industrial operations.

Contact Us Directly for Immediate Assistance

(254) 776-0493

Belt Specifications *

Belt Compound

Top Surface

Smooth

Bottom Surface

Smooth

Color

Black

Number of Plies

3

Nominal Thickness (in)

.512

Anti-Static

No

Max. Width

126

Working Tension

600

Min. Pulley Diameter (in)

18

Min. Temperature

14

Max. Temperature

158
