220 3/16 x 1/16 MOR

Print This Page

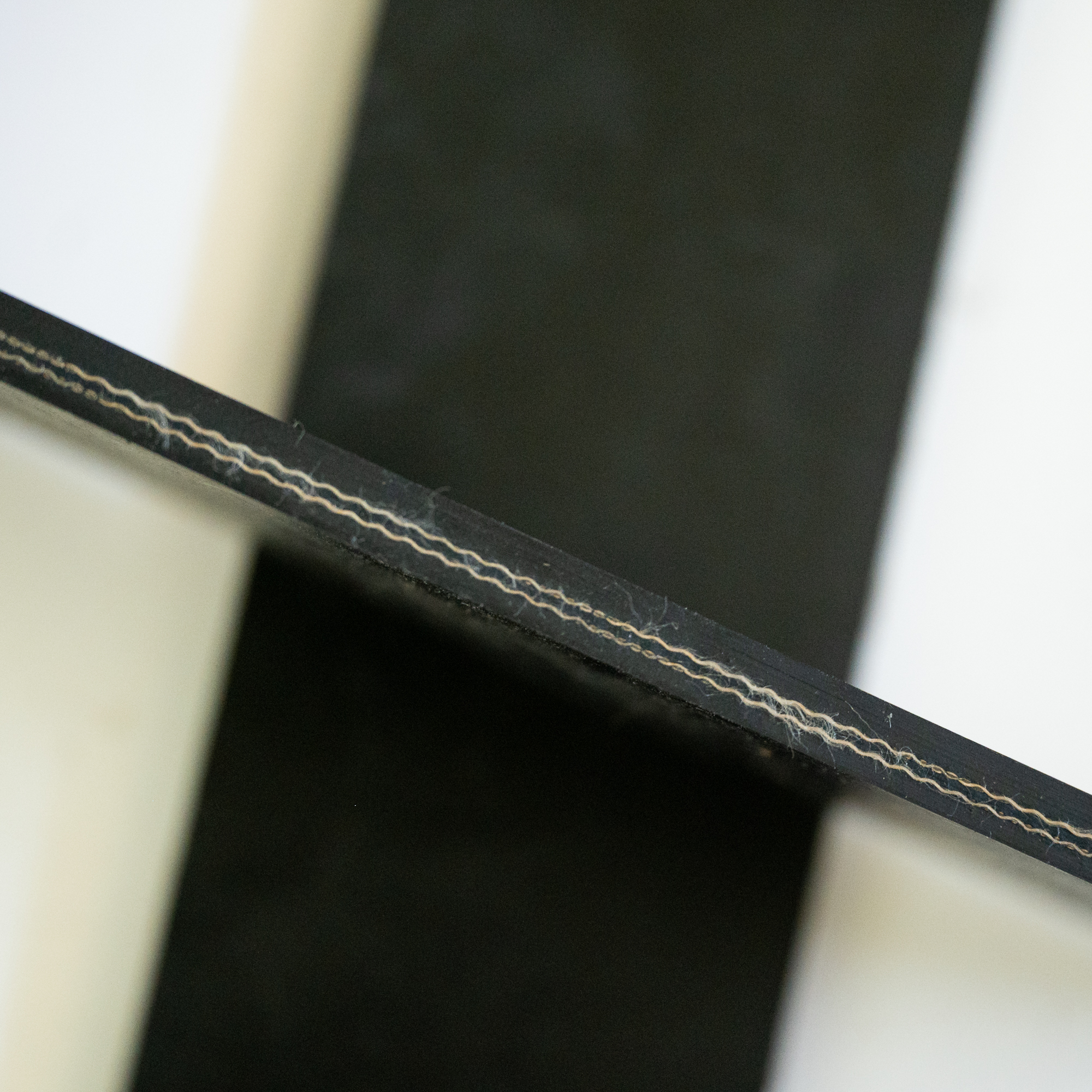

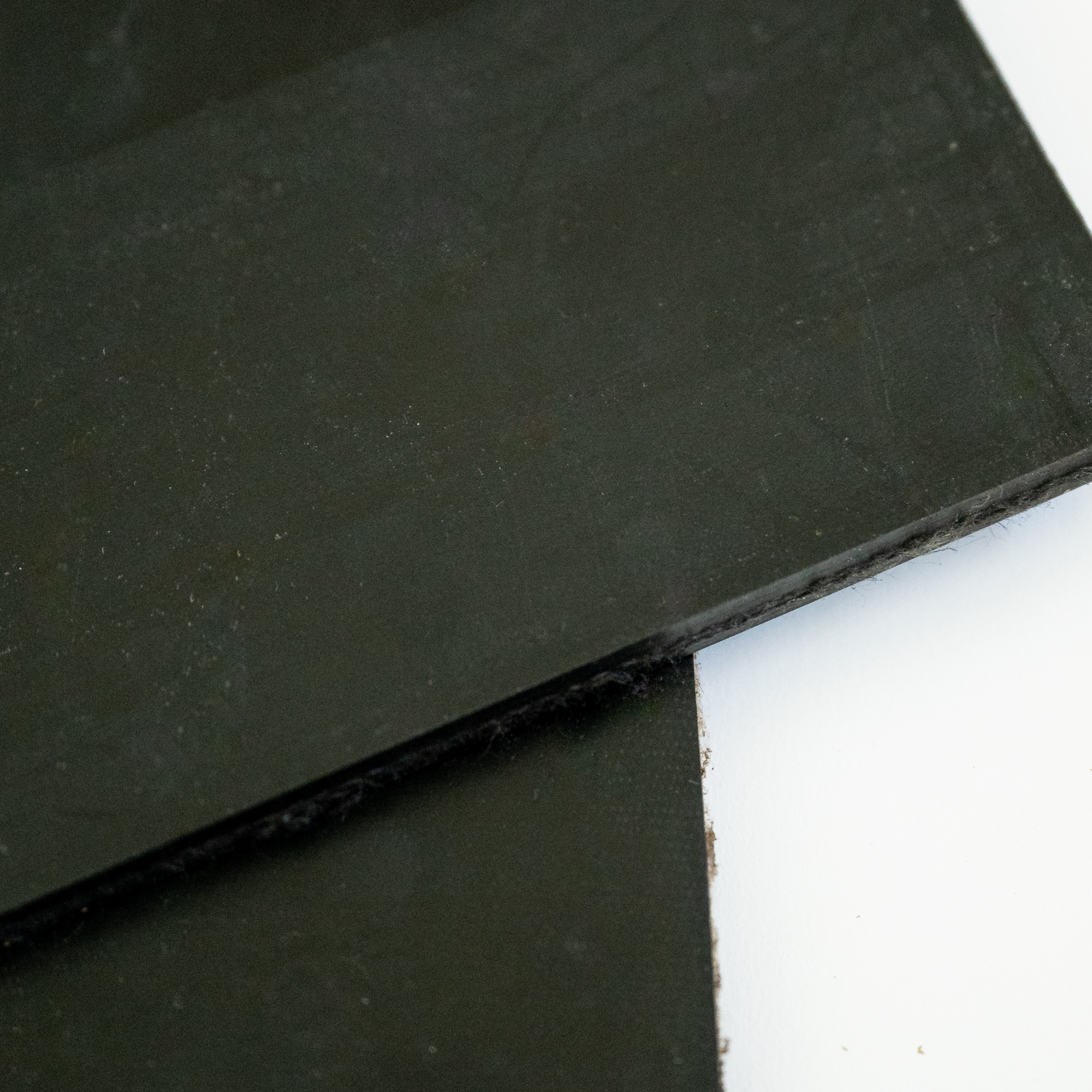

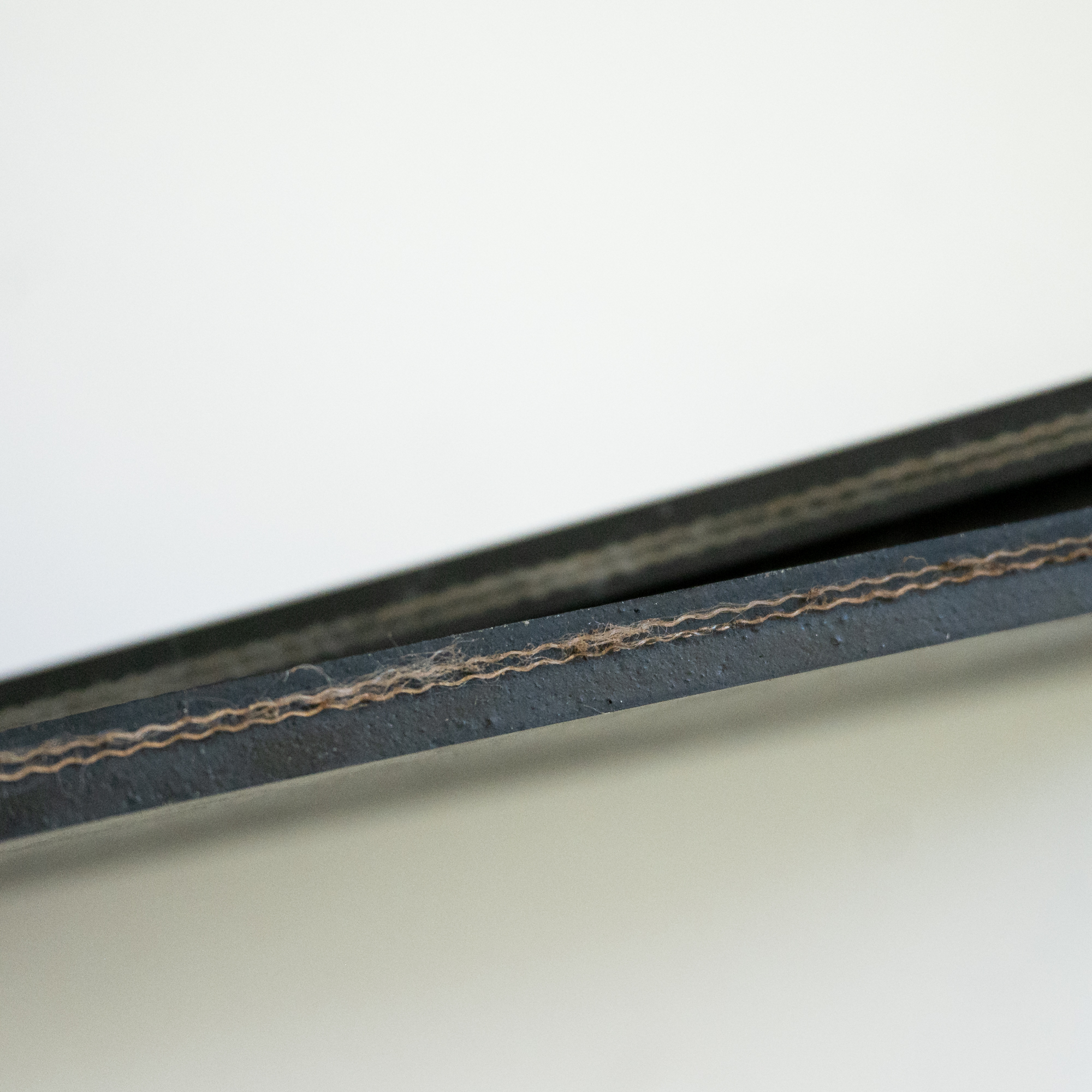

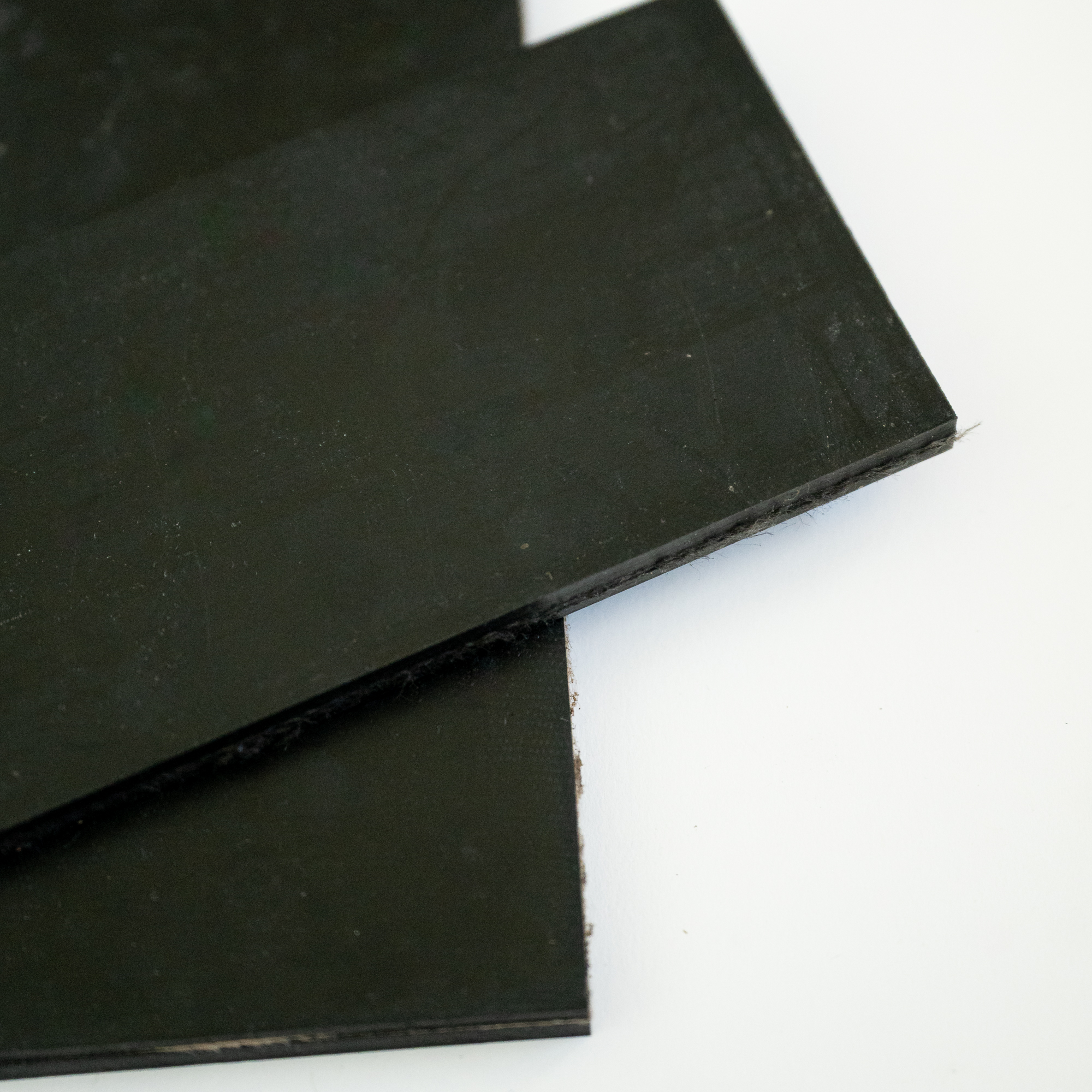

The Timber King 2 Ply 220 3/16 × 1/16 MOR Conveyor Belt is a general purpose conveyor belt fabricated by Shipp Belting Company. It features an MOR rubber compound with a smooth top surface and smooth bottom surface.

The Timber King 2 Ply 220 MOR Conveyor Belt is designed for material handling applications where moderate oil resistance and durability are required. With a 220 PIW working tension rating and polyester and nylon fabric construction, it provides dependable performance in environments with oil exposure and abrasive materials. It is well suited for recycling, wastewater, wood processing, and general industrial conveying applications.

Contact Us Directly for Immediate Assistance

(254) 776-0493

Belt Specifications

Belt Compound

Top Surface

Smooth

Bottom Surface

Smooth

Color

Black

Number of Plies

2

Nominal Thickness (in)

.344

Anti-Static

No

Max. Width

72

Working Tension

220

Weight (Lbs)

.181

Min. Pulley Diameter (in)

14

Min. Temperature

-25

Max. Temperature

225

Clipper

N/R

Fabric

Polyester / Nylon

Meets FDA Requirements

No

USDA Official Approval

No
