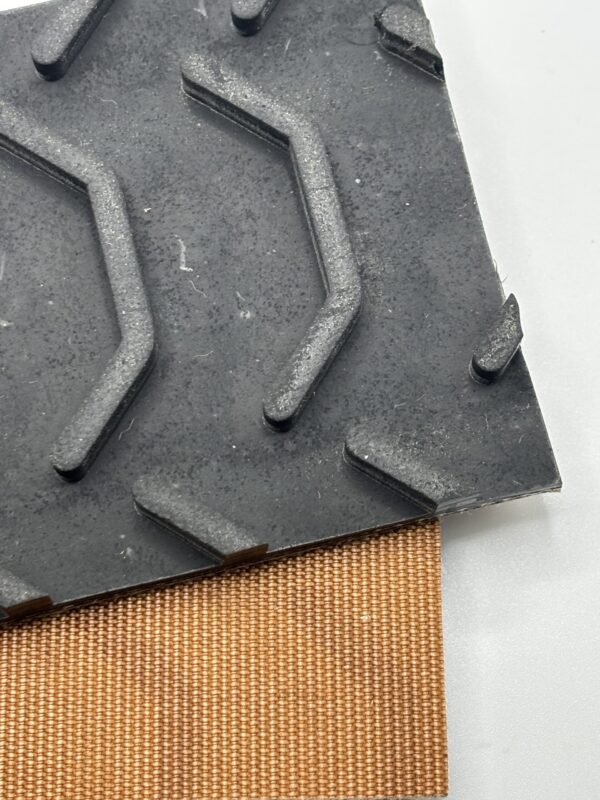

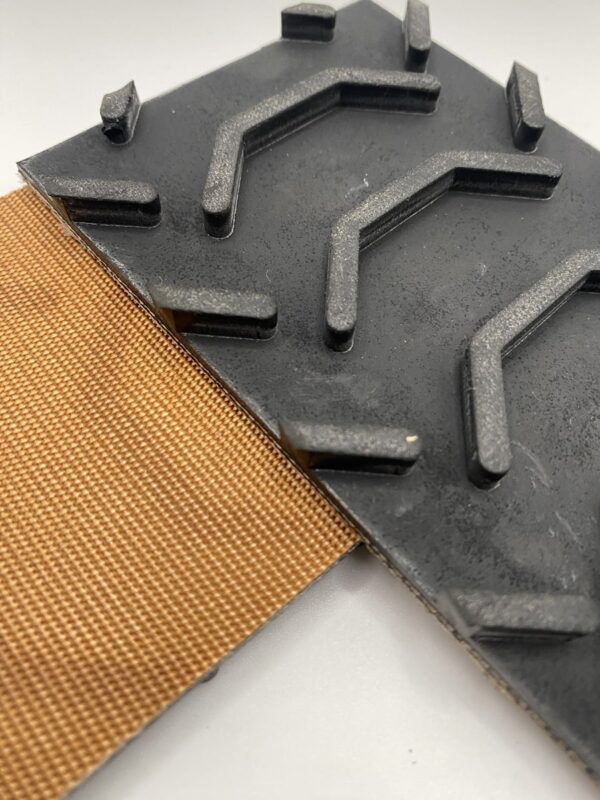

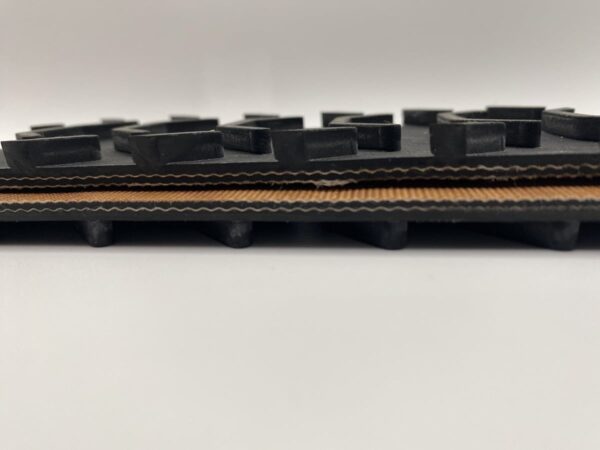

150MINIBITE X Bare conveyor belt material fabricated by Shipp Belting Company. The belt compound is Rubber with a crescent top top surface and bare bottom surface.
150MINIBITE X Bare
Contact Us Directly for Immediate Assistance
Belt Specifications *
| Belt Compound | |
|---|---|
| Top Surface | Crescent Top |
| Bottom Surface | Bare |
| Color | Black |
| Number of Plies | 2 |
| Nominal Thickness (in) | 0.29 |
| Anti-Static | No |
| Max. Width | 72 |
| Working Tension | 150 |
| Weight (Lbs) | 0.085 |
| Min. Pulley Diameter (in) | 6 |
| Min. Temperature | -25 |
| Max. Temperature | 250 |
| Clipper | U2 |
| Staple | 125 |
| Fabric | Nylon, Polyester |
| Meets FDA Requirements | No |
| USDA Official Approval | No |
